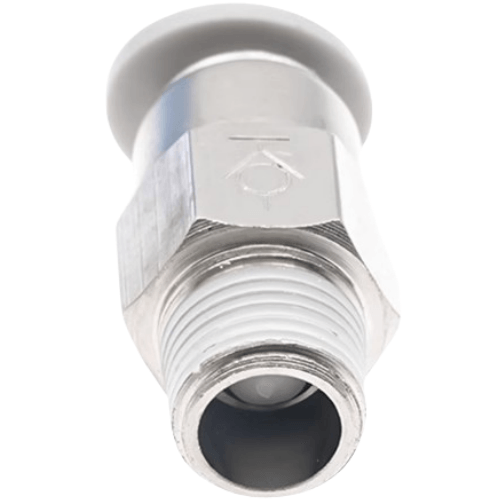

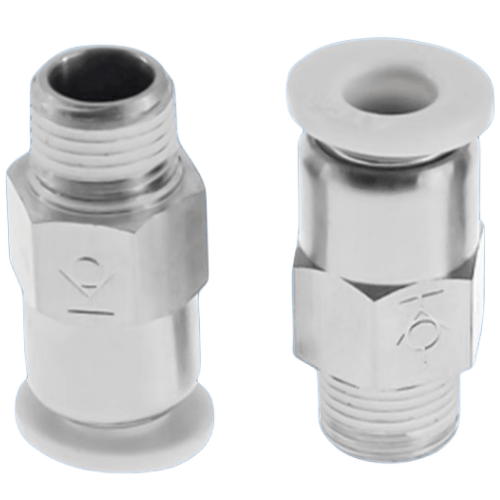

Airtac X-ASPC Connector - Straight Through Quick Plug X-ASPC1202
AirTAC X-ASPC1202 Straight-Through Quick Connect Fitting Technical Details
- Model: X-ASPC1202
- Type: Straight-through push-to-connect pneumatic fitting
- Thread standard: BSPP (G thread)
- Port size: 1/8" (G1/8)
- Tube OD compatibility: Ø4mm (metric) / Ø5/32" (imperial)
- Maximum working pressure: 1.5 MPa (217 psi)
- Burst pressure: ≥4.5 MPa (653 psi)
- Operating temperature: -20℃ to 60℃ (-4°F to 140°F)
- Body material: Brass (surface nickel-plated)
- Seal material: NBR (Nitrile rubber)
- Vibration resistance: ≤5G acceleration
- Flow rate: 350 NL/min (at 0.5 MPa)
- Weight: 12g ±0.5g
- Dimensions: 30mm(L) × 12mm(Dia) × 12mm(Hex)
- Compliance: RoHS compliant
Precision-engineered instant connection solution featuring a 360° rotatable collar for flexible installation orientations. The triple-layered sealing structure combines metal-to-metal contact with elastic deformation sealing, ensuring zero leakage under dynamic pressure conditions. Anti-vibration teeth prevent accidental disconnection.
- Modular pneumatic circuit assembly lines
- Robotic end-effector tooling connections
- CNC machine coolant line interfaces
- Laboratory analytical instrument gas supply
- Electric vehicle battery cooling systems
Installation protocol:
Cut tube ends square (max 0.5mm deviation), deburr thoroughly, and insert until
audible click. For maintenance: Push release collar fully while extracting tube.
Recommended torque: 12-15 N·m during threaded port installation.
| Property | Property Value |
|---|---|
| sku | X-ASPC1202 |
