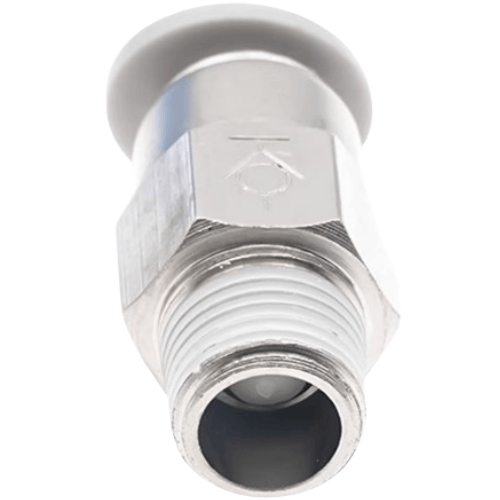

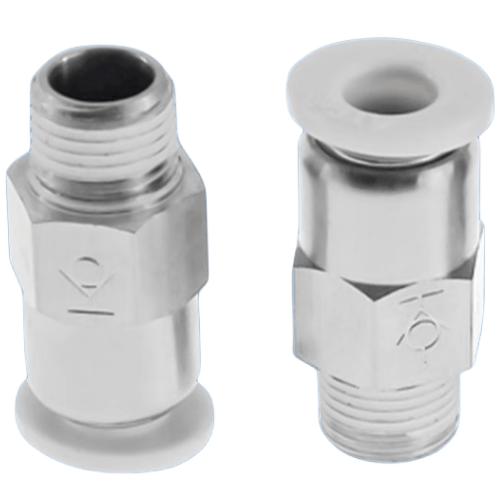

Airtac X-ASPC Connector - Straight Through Quick Plug X-ASPC1203
AirTAC X-ASPC1203 Straight Through Quick Connector Technical Details
- Model: X-ASPC1203
- Type: Straight-through push-to-connect fitting
- Material: Nickel-plated brass body / PPS resin collar
- Seal material: HNBR (Hydrogenated Nitrile) O-ring
- Operating pressure: 0-1.0 MPa (145 psi)
- Temperature range: -20℃ to 80℃ (continuous use)
- Peak temperature resistance: 100℃ (intermittent)
- Tube compatibility: Ø12mm OD pneumatic tubing
- Thread specification: G1/8" (BSPP) female ports
- Flow rate: 750 L/min (at 0.5 MPa)
- Leakage: <0.1 mL/min under max pressure
- Vibration resistance: 10-55Hz, 1.5mm amplitude
- Certifications: RoHS compliant, ISO 6150-1 standard
- Weight: 18.5g ±0.3g
- Dimensions: 40mm(L) × 12mm(Dia) × 26mm(Flange width)
High-flow pneumatic coupling with 360° rotatable collar for tool-free installation. Features double-locking mechanism with visual engagement confirmation window. Anti-dust cap included for port protection. Optimized for high-cycle applications requiring frequent connect/disconnect operations.
- Modular pneumatic assembly lines with tooling changes
- Automated food processing equipment (FDA-compliant materials)
- Semiconductor manufacturing cleanrooms
- Mobile hydraulic test benches
- Robotic end effector quick-change systems
Installation protocol:
Cut tubing square with dedicated cutter, insert until audible click.
Always perform pull-out test (minimum 5kgf retention force verification).
Replace O-ring every 50,000 cycles or 2 years (whichever comes first).
| Property | Property Value |
|---|---|
| sku | X-ASPC1203 |
