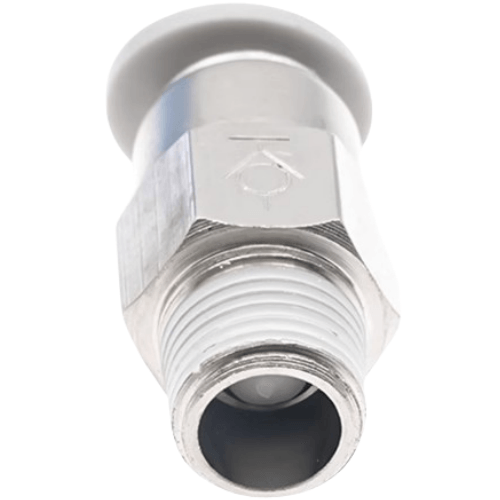

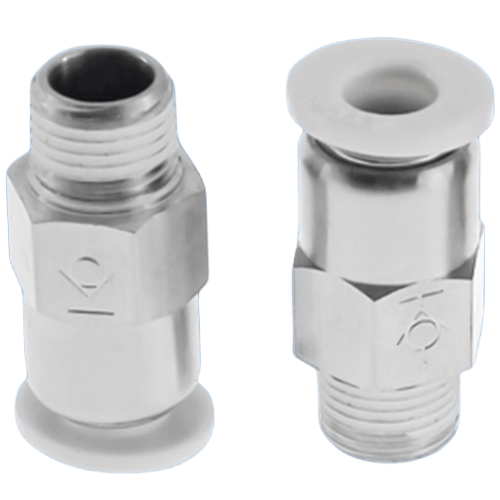

Airtac X-ASPC Connector - Straight Through Quick Plug X-ASPC1204
AirTAC X-ASPC1204 Straight-Through Quick Connector Technical Details
- Model: X-ASPC1204
- Type: Straight-through push-to-connect fitting
- Body material: Nickel-plated brass (RoHS compliant)
- Seal material: NBR (Nitrile) rubber
- Operating pressure: 0.2-1.0 MPa (29-145 PSI)
- Temperature range: -5℃ to 60℃ (23℉ to 140℉)
- Port size: 1/8" BSPP (G1/8) female threads
- Tube compatibility: 4mm OD polyurethane/nylon tubing
- Max flow rate: 300 L/min (at 0.5 MPa)
- Insertion force: ≤20N (with lubricated tube)
- Release mechanism: Single-hand ring pull design
- IP rating: IP40 (dust protected)
- Weight: 20g ±1g
- Dimensions: 18mm(W) × 18mm(D) × 30mm(H)
Precision-engineered quick-disconnect coupling featuring zero-leak O-ring sealing and 360° rotatable connection. The corrosion-resistant nickel plating ensures durability in humid environments, while the ergonomic release collar allows tool-free tube insertion/extraction. Includes built-in tube grip teeth for vibration resistance.
- Modular pneumatic system installations
- Robotic arm end effector connections
- Medical gas delivery systems
- Packaging machine air line distribution
- 3D printer pneumatic components
- Laboratory instrument air supply
Installation protocol:
Cut tubing square with dedicated cutter, deburr edges, and insert fully until "click" is heard.
Confirm connection by pulling tube with 30N force. Replace O-rings every 5,000 cycles.
| Property | Property Value |
|---|---|
| sku | X-ASPC1204 |
