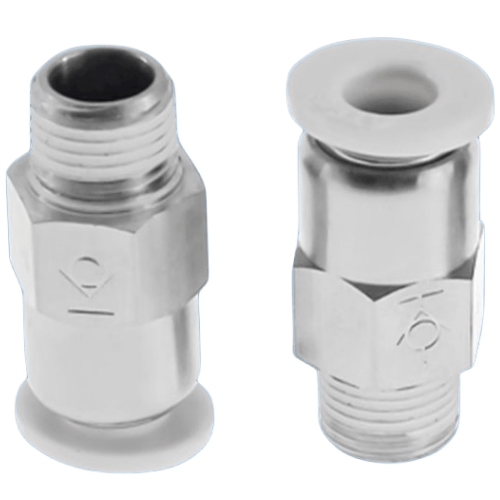

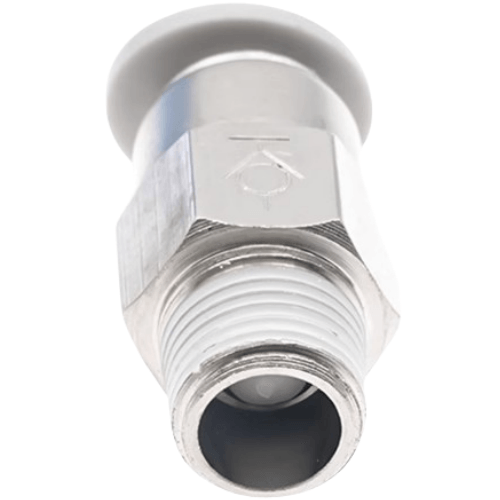

Airtac X-ASPC Connector - Straight Through Quick Plug X-ASPC601
AirTAC X-ASPC601 Straight-Through Quick Connector Specifications
- Model: X-ASPC601
- Type: Straight-through push-to-connect fitting
- Body material: Nickel-plated brass (anti-corrosion grade)
- Seal material: NBR (Nitrile rubber)
- Temperature range: -20℃ to 80℃
- Operating pressure: 0.3–1.5 MPa
- Tube compatibility: Ø6mm OD polyurethane/nylon tubing
- Thread specification: M5×0.8 internal thread (both ends)
- Connection type: One-touch push-in (ISO 1635 compliant)
- Vibration resistance: ≤5G @ 10-2000Hz
- Installation torque: 0.8-1.2 N·m (thread tightening)
- Leakage rate: ≤0.1 NL/min @ 0.5MPa
- Weight: 52g ±2g
- Dimensions: 55mm(L) × 12mm(Dia) × 12mm(Dia)
- Certification: RoHS compliant, REACH tested
High-flow quick connector featuring dual-lock collet mechanism for secure tube retention. The internal flow path is optimized for minimal pressure drop (ΔP ≤0.02MPa @ 1MPa). Corrosion-resistant nickel plating withstands humid environments. Includes built-in tube grip indicator window for visual installation confirmation.
- Pneumatic robot end-effector tooling
- Modular assembly line air supply networks
- Packaging machine rotary joint interfaces
- Medical device gas delivery systems
- Food processing equipment (FDA-compliant material version available)
Installation protocol:
Cut tubing square (90°±2°) before insertion. Engage with firm push until audible click.
Test retention by pulling with 50N force. Not recommended for hydraulic fluids or
hydrocarbon-based media. Maximum angular misalignment tolerance: 3°.
| Property | Property Value |
|---|---|
| sku | X-ASPC601 |
