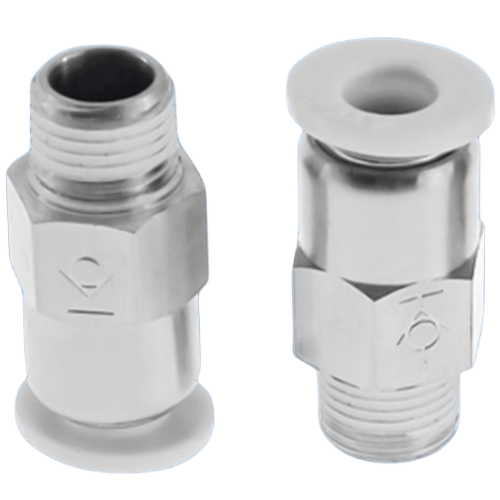

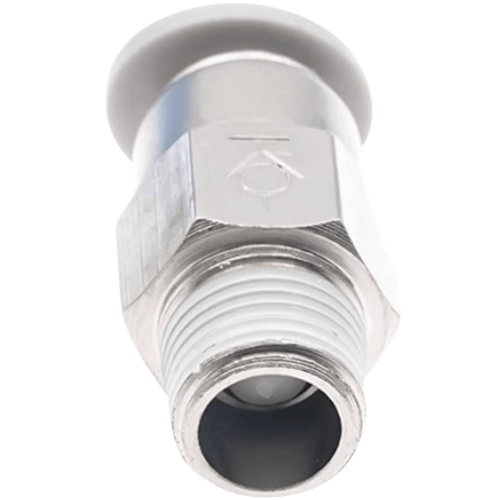

Airtac X-ASPC Connector - Straight Through Quick Plug X-ASPC801
AirTAC X-ASPC801 Straight-Through Quick Connector Specifications
- Model: X-ASPC801
- Type: Straight-through push-to-connect fitting (male thread to tube)
- Thread standard: G1/8 (ISO228-1) or optional NPT1/8
- Tube compatibility: Ø4mm, 6mm, 8mm (multi-size grip design)
- Material: Brass (nickel-plated) / Stainless steel 303 optional
- Operating pressure: 0.05–1.0 MPa
- Burst pressure: ≥3.0 MPa
- Temperature range: -20℃ to 120℃ (NBR seals) / -20℃ to 150℃ (FKM seals optional)
- Flow rate: Cv=0.8 (at 0.5MPa)
- Leakage: ≤20 bubbles/min (ISO6952 test standard)
- Installation torque: 10-12 N·m (brass) / 15-18 N·m (stainless)
- Weight: 28g (brass) / 42g (stainless steel)
- Dimensions: 34mm(L) × 16mm(Dia) × 18mm(Hex)
- IP rating: IP54 (standard) / IP67 (with optional boot)
High-flow quick connector featuring a unique collet mechanism for secure tube retention. The through-hole design minimizes pressure drop (ΔP ≤0.02MPa @10L/min) and supports bi-directional flow. Nickel-plated brass version offers corrosion resistance for general industrial use, while stainless steel variant is ideal for chemical or high-humidity environments.
- Pneumatic tool air supply lines
- CNC machine coolant line connections
- Semiconductor fab gas distribution
- Mobile hydraulic test benches
- Food-grade air systems (with FDA-compliant seals)
Installation protocol:
Insert tube perpendicularly until "click" sound is heard. Perform pull-test with 50N force to verify engagement.
For stainless steel version, apply PTFE tape on threads and torque using 17mm wrench flats.
| Property | Property Value |
|---|---|
| sku | X-ASPC801 |
