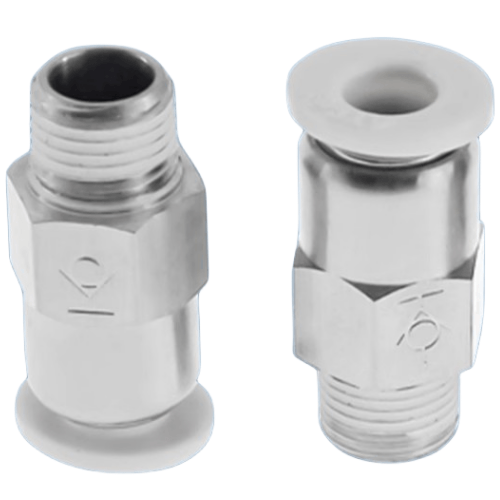

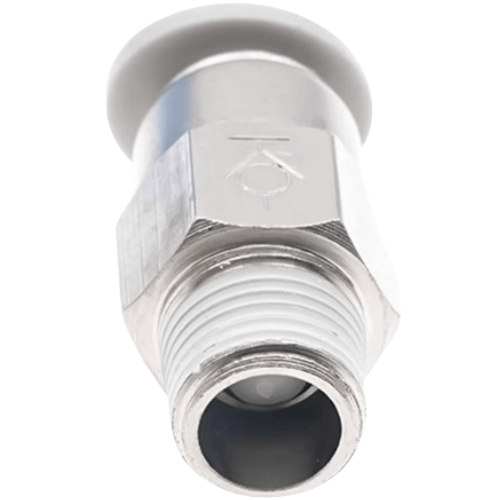

Airtac X-ASPC Connector - Straight Through Quick Plug X-ASPC802
$5.13
Regular price
$12.63
Sale!
Unit price
per
sold in last hours
customers are viewing this product
Couldn't load pickup availability
SKU:
In stock
SKU:
X-ASPC802
Product type:
DELIVERY
Estimated delivery between
and
Guarantee Safe Checkout
Description
AirTAC X-ASPC802 Straight-Through Quick Connector Specifications
- Model: X-ASPC802
- Type: Push-to-connect straight through connector
- Material: Nickel-plated brass body
- Seal material: HNBR (Hydrogenated Nitrile) rubber
- Operating pressure: 0.05–1.0 MPa
- Temperature range: -20℃ to 80℃
- Tube compatibility: Φ8mm OD pneumatic tubing
- Thread specification: G1/8 (ISO228 standard)
- Weight: 28g ±0.5g
- Dimensions: 42mm(L) × 21mm(W) × 21mm(H)
- Flow rate: 450 NL/min (at 0.5MPa)
- Vibration resistance: 10–55Hz, 1.5mm amplitude
- Certification: RoHS compliant
High-flow quick connector featuring zero-leakage safety design with visible tube inspection window. The 360° rotatable body allows flexible installation orientations. Anti-dust cap included for unused ports. Rated for 500,000+ insertion cycles.
Typical Applications:
- Modular pneumatic assembly lines
- Robotic arm end effector connections
- Compressed air distribution manifolds
- CNC machine tool pneumatic circuits
- Plastic injection molding air lines
Installation note:
Cut tubing ends square (90°±2°) and deburr before insertion.
For optimal sealing, push tubing until audible "click" is heard.
Maximum allowable axial force: 15N.
Maintenance:
Clean with compressed air (≤0.3MPa) monthly in dusty environments.
Lubricate seal lips with silicone grease (JIS K2220) every 6 months
for high-cycle applications.
| Property | Property Value |
|---|---|
| sku | X-ASPC802 |
