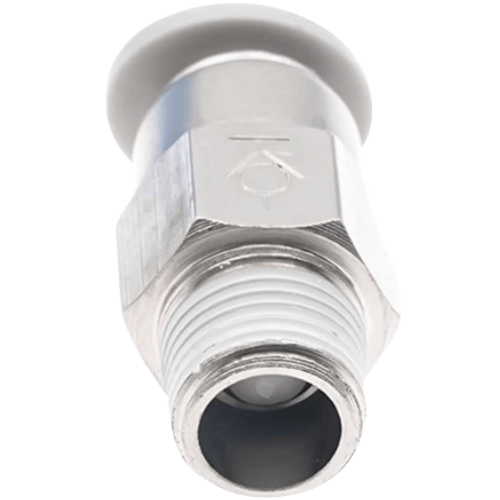

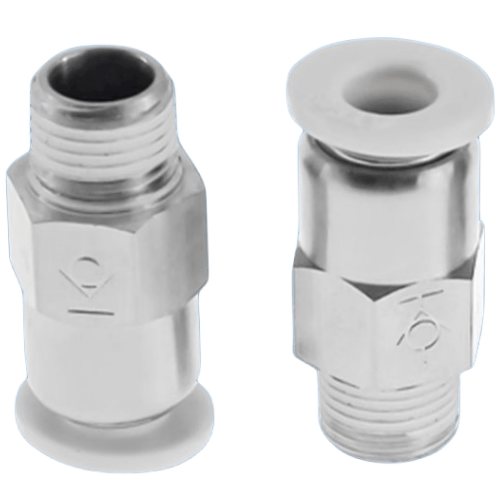

Airtac X-ASPC Connector - Straight Through Quick Plug X-ASPC803
AirTAC X-ASPC803 Straight Through Quick Connector Technical Details
- Model: X-ASPC803
- Type: Straight-through push-to-connect fitting
- Body material: Nickel-plated brass (lead-free)
- Seal material: HNBR (Hydrogenated Nitrile) + PA66 collar
- Tube compatibility: Φ8mm OD pneumatic tubing
- Thread specification: G1/8 (BSPP) female threads
- Max working pressure: 1.0 MPa (145 psi)
- Temperature range: -20℃ to +80℃ (continuous use)
- Peak temperature resistance: 100℃ (intermittent)
- Weight: 28g ±0.5g
- Dimensions: 43mm(L) × 26mm(W) × 26mm(H)
- Insertion force: ≤35N (with lubrication)
- Extraction force: 15-25N (tube release collar activated)
- IP rating: IP40 (dust protected)
- Vibration resistance: 10-55Hz, 1.5mm amplitude
Low-profile pneumatic connector featuring one-handed operation for rapid tube installation/removal. The 45° angled release collar prevents accidental disconnections while enabling tool-free maintenance. Precision-machined internal O-ring groove ensures leak-proof sealing even under pressure fluctuations.
- Modular pneumatic circuit assembly lines
- Robotic end-effector tooling changes
- Mobile hydraulic test bench setups
- Cleanroom-compatible equipment (low particle emission)
- High-cycle automation (≥500,000 actuations)
Installation protocol:
Cut tubing square with a dedicated cutter, deburr edges, and insert fully until audible click.
Perform 2-3mm pull test to verify positive lock. Lubricate every 10,000 cycles in high-wear environments.
