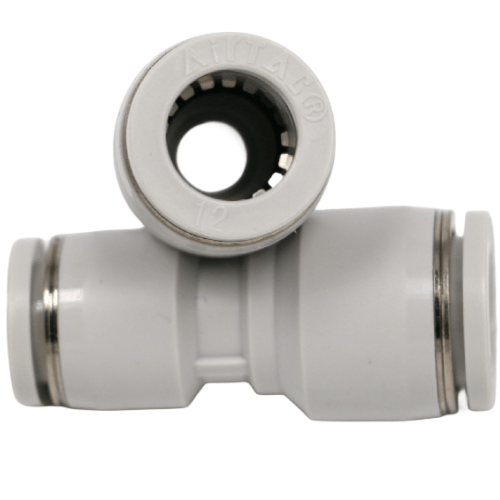

Airtac X-EPG Connector - Reducing Straight X-EPG108
$3.17
Regular price
$10.67
Sale!
Unit price
per
sold in last hours
customers are viewing this product
Couldn't load pickup availability
SKU:
In stock
SKU:
X-EPG108
DELIVERY
Estimated delivery between
and
Guarantee Safe Checkout
Description
AirTAC X-EPG108 Reducing Straight Fitting Specifications
- Model: X-EPG108
- Type: Step-down straight thread connector
- Thread specification: PT1/8 (Male) to PT1/4 (Female)
- Material: Brass (CuZn39Pb3) with nickel plating
- Seal material: NBR (Nitrile rubber)
- Max working pressure: 1.0 MPa
- Proof pressure: 1.5 MPa
- Burst pressure: 3.0 MPa
- Temperature range: -20℃ to 80℃
- Surface roughness: Ra ≤1.6μm
- Weight: 14.8g ±0.5g
- Dimensions: 19.5mm(Length) × 12mm(Minor OD) × 16.5mm(Major OD)
- Hex size: 14mm wrench flat
- Flow coefficient (Cv): 0.3
- Vibration resistance: 10-2000Hz, 5G acceleration
Precision-machined reducing adapter with dual sealing surfaces, designed for high-pressure pneumatic systems requiring diameter transitions. Features anti-vibration grooves and leak-proof elliptical thread design. Compatible with ISO 1179-2 and DIN 3852 standards.
Typical Applications:
- Pneumatic cylinder port adaptation
- Air compressor manifold transitions
- Robotic arm pneumatic circuit branching
- Medical gas line installations
- CNC machine tool air networks
- Food processing equipment (requires optional FDA seals)
Installation note:
Apply 2-3 wraps of PTFE tape on male threads using clockwise winding.
Tighten to 12-15 N·m torque using two wrenches (counter-hold female end).
Pressure test at 1.25× system pressure after installation.
Not compatible with:
- Hydraulic fluids (use X-EPGH series instead)
- Oxygen-rich environments above 40% concentration
- Continuous thermal cycling applications
| Property | Property Value |
|---|---|
| sku | X-EPG108 |
