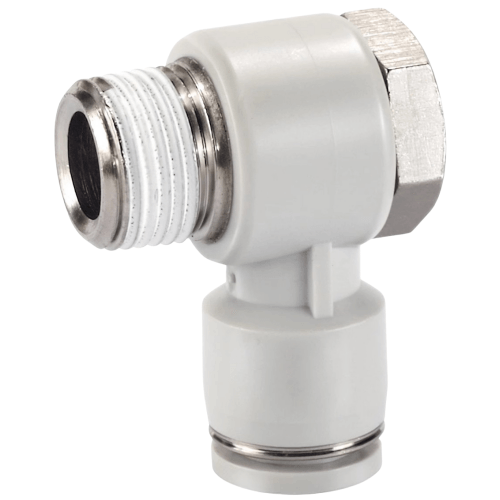

Airtac X-EPH External Hex Elbow Connector X-EPH8M12
$3.89
Regular price
$11.39
Sale!
Unit price
per
sold in last hours
customers are viewing this product
Couldn't load pickup availability
SKU:
In stock
SKU:
X-EPH8M12
DELIVERY
Estimated delivery between
and
Guarantee Safe Checkout
Description
AirTAC X-EPH8M12 Hexagonal Elbow Joint Specifications
- Model: X-EPH8M12
- Type: Male thread hexagonal elbow joint
- Thread specification: M12x1.5 (male thread) to M12x1.5 (female thread)
- Material: Carbon steel with nickel plating (surface hardness ≥HV300)
- Seal material: NBR/FKM optional
- Installation torque: 10-15 Nm (recommended with thread locker)
- Temperature range: -20℃ to 80℃ (NBR) / -20℃ to 150℃ (FKM)
- Working pressure: 0.05-1.0 MPa
- Surface roughness: Ra ≤1.6μm (sealing surfaces)
- Weight: 0.08 kg
- Dimensions: 40mm(L) × 24mm(W) × 24mm(H)
- Vibration resistance: ≤10-55Hz (amplitude ≤1.5mm)
High-precision pivot joint with 90° flow redirection capability, featuring anti-vibration locking nuts and corrosion-resistant coating. The hexagonal design allows tool-assisted tightening in confined spaces. Compatible with ISO 8434-1/DIN 2353 metric tube standards.
Typical Applications:
- Pneumatic cylinder mounting brackets
- CNC machine tool coolant line connections
- Robotic welding arm pneumatic circuits
- Packaging machine rotary union interfaces
- Semiconductor equipment gas delivery systems
Installation guidelines:
Apply thread sealant to male threads before assembly. Tighten using calibrated torque wrench in three progressive stages (30%, 70%, 100% of final torque). Avoid side-load forces exceeding 50N after installation.
| Property | Property Value |
|---|---|
| sku | X-EPH8M12 |
