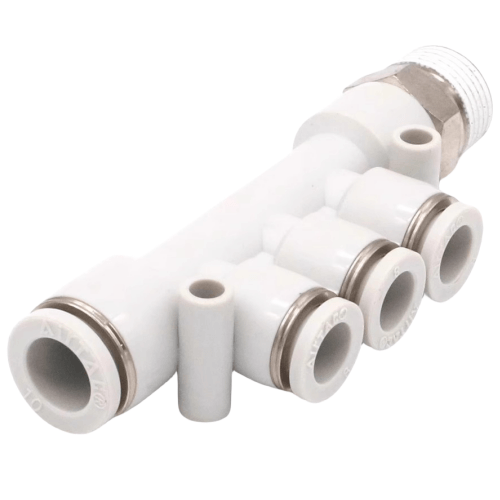

Airtac X-EPKD Adapter - Reducing Thread Manifold X-EPKD6401
AirTAC X-EPKD6401 Reducing Thread Five-Way Fitting Specifications
- Model: X-EPKD6401
- Type: Reducing thread manifold (5 ports)
- Main thread: G1/4 (external)
- Reduced thread: M5×0.8 (internal)
- Material: Nickel-plated brass (C3604)
- Pressure rating: 0.05–1.0 MPa
- Temperature range: -5℃ to 80℃
- Proof pressure: 1.5 MPa
- Weight: 82±3g
- Dimensions: 52mm(L) × 40mm(W) × 35mm(H)
- Surface roughness: Ra≤3.2μm (sealing areas)
- Port configuration: 1 inlet, 4 outlets (3×G1/4, 1×M5)
Multi-port distribution block with stepped threading for hybrid pneumatic line connections. Features precision-machined flow channels and corrosion-resistant plating, ideal for compact systems requiring multiple actuator feeds from a single supply line. Compatible with air/neutral gases.
- Modular pneumatic control cabinets
- Multi-axis robotic gripper systems
- CNC machine tool pneumatic distribution
- Automated packaging line air routing
- Laboratory instrumentation manifolds
Installation note:
Apply 243 thread sealant on male threads only. Tightening torque should not exceed 3.5N·m for M5 ports.
Maintain minimum 15mm clearance around ports for tool access.
| Property | Property Value |
|---|---|
| sku | X-EPKD6401 |
