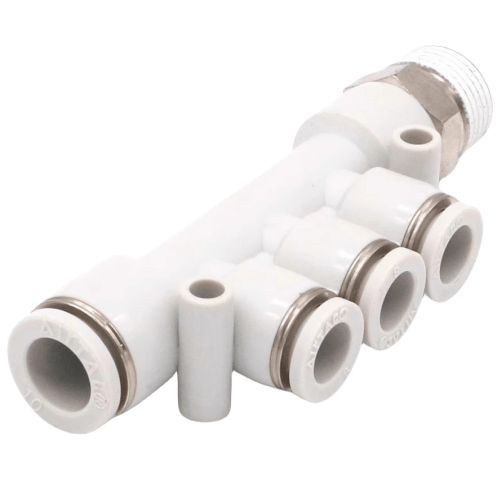

Airtac X-EPKD Adapter - Reducing Thread Manifold X-EPKD8402
AirTAC X-EPKD8402 Reducer Thread Five-way Fitting Technical Details
- Model: X-EPKD8402
- Type: Reducer thread five-way manifold (PT/NPT compatible)
- Primary port thread: PT1/2 (G1/2)
- Reducer thread specs: PT3/8 → PT1/4 stepped reduction
- Material: Anodized aluminum alloy (AL6063-T5)
- Pressure range: 0.05–1.2 MPa
- Temperature range: -20℃ to 80℃
- Seal type: Dual EPDM O-rings (AS568A-016 standard)
- Surface treatment: Chromate conversion coating
- Weight: 278±5g
- Dimensions: 62mm(L) × 48mm(W) × 34mm(H)
- Port spacing: 20mm center-to-center (vertical), 18mm (horizontal)
- Mounting torque: 12-15 N·m (aluminum body)
- Compliance: RoHS compliant, ISO 1179-1 standard
Multi-stage pneumatic distribution block with integrated pressure drop compensation, featuring asymmetrical port configuration for space-constrained installations. The anodized surface resists chemical corrosion in humid environments, while precision-machined threads ensure leak-free connections across pressure fluctuations.
- Modular pneumatic control cabinets
- Robotic arm tool changer manifolds
- CNC machine multi-circuit branching
- Compressed air distribution in food-grade systems (when using compatible seals)
- Vacuum line conversion setups
Installation protocol:
Apply thread sealant only on male threads (LOCTITE 545 recommended).
Avoid overtightening - use torque wrench for critical connections.
Port alignment tolerance: ±2° angular deviation allowed.
| Property | Property Value |
|---|---|
| sku | X-EPKD8402 |
