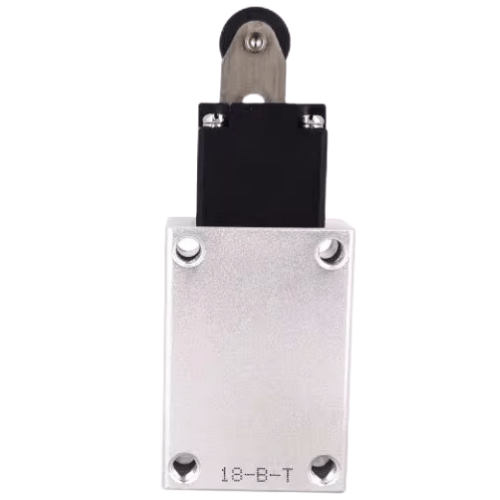

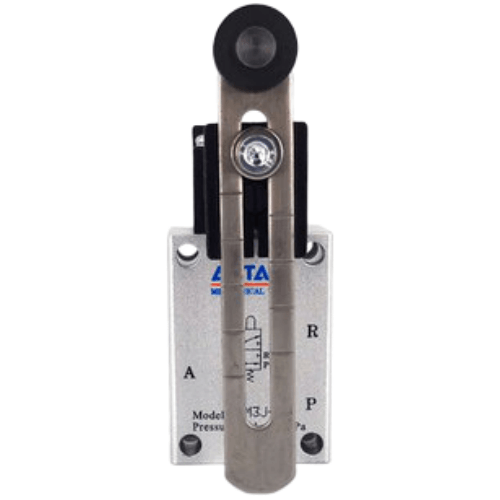

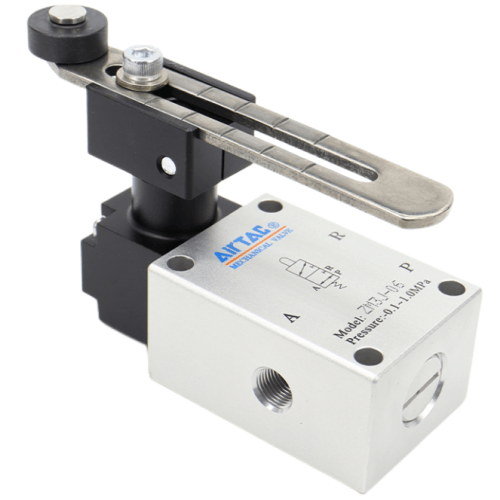

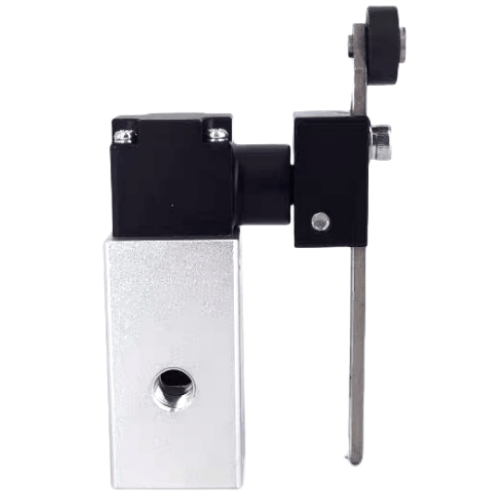

Airtac ZM3J Roller Adjustable Mechanical Valve ZM3J06
2. Roller can be mounted on the inner side of the lever.
3. Lever mounting position is adjustable.
4. Adjustable head orientation for flexible installation.
5. Contact pin length is tunable for precise actuation.
**Category**: Mechanical Valves **Brand**: AirTAC **Series**: ZM3J *Note: Features emphasize modular configurability for diverse pneumatic system integration.*
AirTAC ZM3J06 Roller-Adjustable Mechanical Valve Specifications
- Model: ZM3J06
- Type: 3-way roller-adjustable manual valve
- Port size: PT1/4 (G1/4 thread standard)
- Operating pressure: 0.1–0.8 MPa
- Max flow rate: 650 l/min (Cv=0.65)
- Valve body material: Anodized aluminum alloy
- Seal material: High-wear NBR rubber
- Operating temperature: -20℃ to 80℃
- Mounting type: Panel mount with M5 fasteners
- Weight: 215g ±5g
- Dimensions: 56mm(L) × 38mm(W) × 42mm(H)
- Adjustment range: 0-90° roller rotation
- Actuation force: ≤3.5N
Manual override valve with precision roller adjustment mechanism, featuring tactile feedback for incremental flow control. The zinc-plated steel roller and wear-compensation design ensure over 500,000 cycles durability. Integrated dust shield prevents particulate ingress in harsh environments.
- Manual override stations in automated production lines
- Flow calibration in pneumatic testing rigs
- Emergency stop systems for machinery
- Batch processing equipment requiring tactile adjustment
- Educational pneumatic training setups
Installation note:
Lubricate roller shaft with ISO VG32 hydraulic oil before initial use.
Mount in positions avoiding direct lateral force on adjustment wheel.
Max 0.5mm panel thickness recommended for secure mounting.
| Property | Property Value |
|---|---|
| sku | ZM3J06 |
| Position | 3-Port 2-Position |
| Port Size | PT1/8 |
