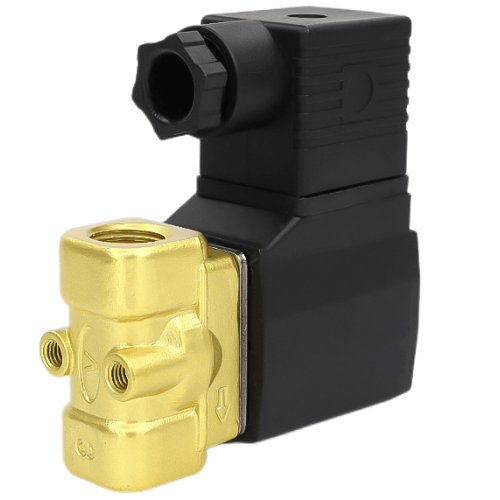

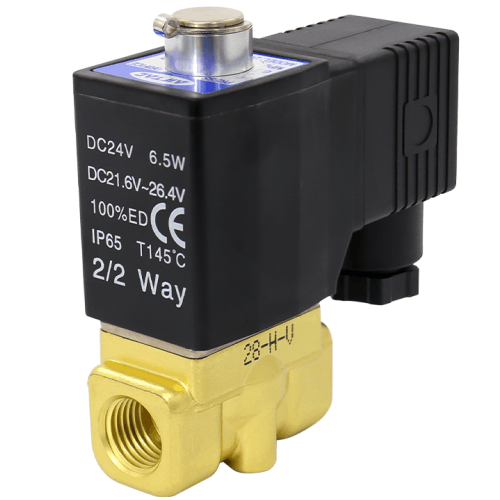

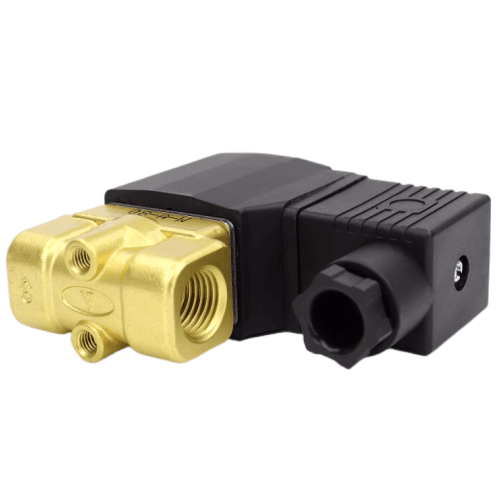

Airtac 2KWX Fluid Solenoid Valve 2KWX03008C
2. Wide pressure range adaptability – options include Ultra-High Pressure (X), High Pressure (H), Standard, and Large Flow (L) configurations;
3. Compact structure with minimized footprint, lightweight design, and tool-free assembly/disassembly capability;
4. Brass valve body construction with Class B thermal-rated coil. Standard FPM (Fluorocarbon Rubber) seals ensure compatibility with multiple media. Custom seal materials available upon consultation with our technical department;
5. IP65-rated coil protection, available in direct lead wire or DIN connector wiring configurations.
Category: Fluid Solenoid Valves | Brand: AirTAC | Series: 2KWX Series
AirTAC 2KWX Fluid Solenoid Valve 2KWX03008C Technical Details
- Model: 2KWX03008C
- Type: 2-way normally closed (direct-acting)
- Port size: PT1/4 (G1/4 optional)
- Fluid compatibility: Water, light oils, air
- Operating pressure: 0.05–1.0 MPa
- Voltage options: DC12V (±10%), DC24V (±10%), AC110V (±10% 50/60Hz), AC220V (±10% 50/60Hz)
- Flow coefficient (Cv): 1.2
- Response time: ≤15ms (open/close)
- Weight: 900g ±5%
- Dimensions: 120mm(L) × 40mm(W) × 80mm(H)
- Body material: Stainless steel (SUS304)
- Seal material: EPDM (standard), optional FKM
- Temperature range: -5℃ to 80℃ (EPDM), -10℃ to 150℃ (FKM)
- Power consumption: 4.8W (DC), 5.5VA (AC)
- Protection rating: IP67 (when properly installed)
- Port connection: BSPP (parallel thread)
- Max viscosity: ≤50 cSt
High-flow fluid control valve with corrosion-resistant stainless steel construction, designed for precise liquid media management. Features low-pressure start capability (0.05MPa) and bubble-tight sealing. Includes manual override for system debugging. Requires 25μm filtered fluid to prevent seat damage.
- Industrial water treatment systems
- Coolant control in CNC machines
- Beverage dispensing equipment
- Hydroponic irrigation systems
- Chemical dosing pumps
- Car wash water management
Installation requirements:
Mount horizontally with arrow indicating flow direction.
Install upstream filter (mesh ≤25μm) and shock absorber when used with pulsation pumps.
Allow 20mm clearance below coil for heat dissipation.
| Property | Property Value |
|---|---|
| sku | 2KWX03008C |
| Port Size | PT1/4 |
| Flow Aperture | 1.5mm |
| Coil Voltage | AC 110V |
