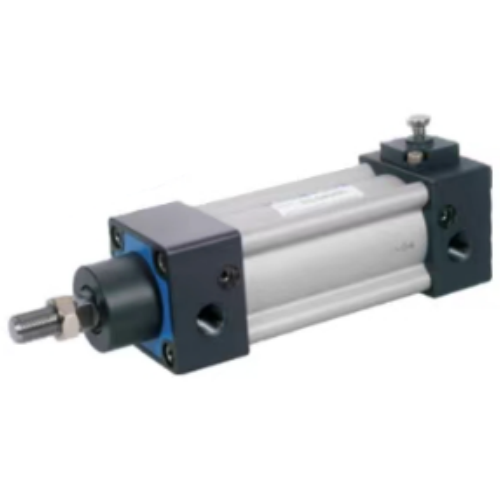

Airtac SILB Rear Locking Cylinder SILB200X400
2. Release mechanisms: automatic disengagement and manual release.
Category: Locking Cylinders | Brand: AirTAC | Series: SILB
AirTAC SILB200X400 Locking Cylinder Technical Specifications
- Model: SILB200X400
- Type: Double-acting cylinder with mechanical locking mechanism
- Bore size: 200mm
- Stroke: 400mm
- Operating pressure: 0.1–0.9 MPa
- Cushioning: Adjustable pneumatic cushion (both ends)
- Mounting style: MF1/MF2 flange mounting (standard), optional foot mounting
- Weight: 22.5kg ±3%
- Dimensions: 820mm(L) × 240mm(W) × 240mm(H) (extended length)
- Rod diameter: 45mm (chromed steel)
- Seal material: NBR/PU composite seals
- Ambient temperature: -20℃ to +80℃
- Lock holding force: 18,000N (max)
- Protection rating: IP65 (standard), IP67 optional
- Lubrication: Pre-lubricated (ISO VG32 equivalent)
- Lock activation: Pneumatic control (0.3–0.8 MPa required for lock release)
Heavy-duty locking cylinder designed for vertical load holding applications. Features dual safety mechanism with mechanical lock engagement confirmation sensor ports (M5 thread). The triple-seal design prevents pressure decay during extended holding periods. Requires 40μm filtered air with ≤5% relative humidity.
- Press brake tool positioning systems
- Automotive welding fixture stabilization
- Elevated platform emergency braking
- Die-casting machine safety interlocks
- Warehouse vertical lift position retention
Installation criticals:
Requires vertical orientation (±3° tolerance) for optimal lock engagement.
Always de-energize system and manually release lock (via emergency override port)
before maintenance. Minimum 0.4 MPa pressure required for smooth lock disengagement.
Safety notice:
Never exceed 1,200mm/s piston speed during operation.
Install mechanical hard stops as secondary safety measure for overhead applications.
Cycle lock mechanism 3-5 times without load after installation.
| Property | Property Value |
|---|---|
| sku | SILB200X400 |
| Understood. Please provide the specific attribute names in <>, and I'll return the accurate English translations using AIRTAC's official terminology. Example: User input: <缸径> My output: Bore | Operating Temperature: -20°C to 80°C Speed Range: 30-500 mm/s |
| Port Size | BSPT 3/4 |
| Magnet | Non-magnetic |
| Bore Diameter | <200mm> |
| Stroke | <400mm> |
| Lock Position | Rear Cover with Lock Type |
