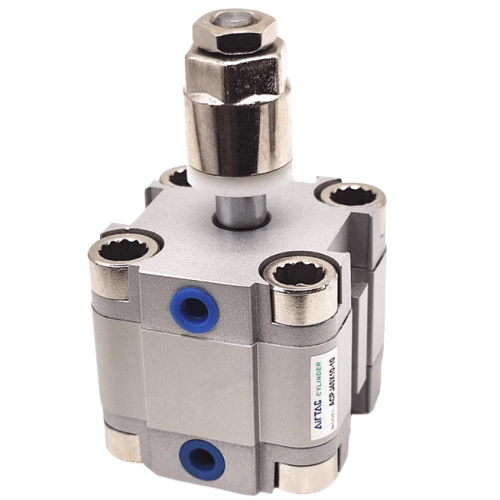

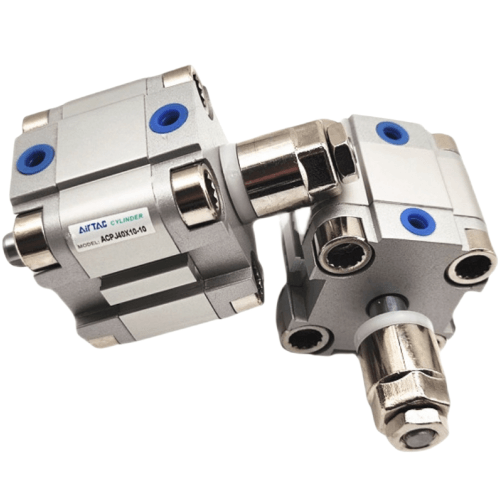

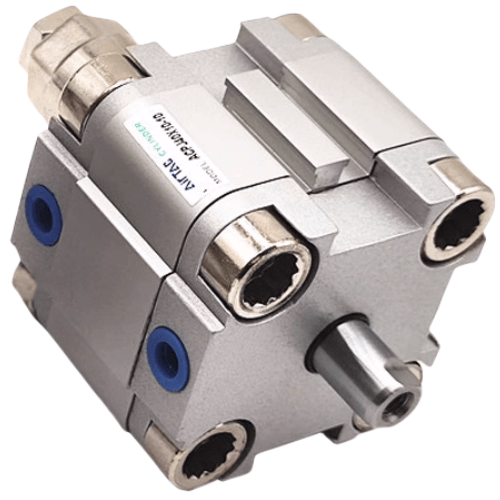

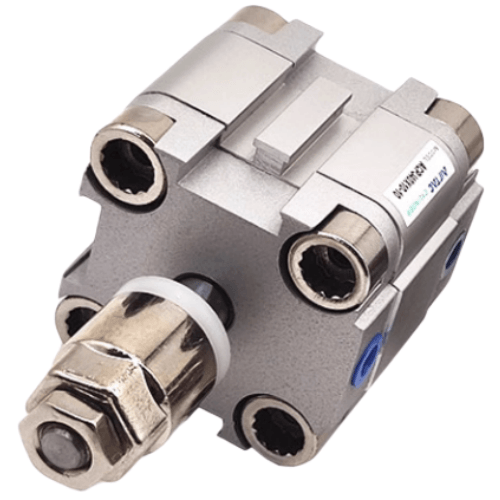

Airtac ACPJ Adjustable Compact Cylinder ACPJ12X110-100B
$51.40
Regular price
$58.90
Sale!
Unit price
per
sold in last hours
customers are viewing this product
Couldn't load pickup availability
SKU:
In stock
SKU:
ACPJ12X110-100B
Product type:
DELIVERY
Estimated delivery between
and
Guarantee Safe Checkout
Description
1. Compliant with DIN standards in structural design;
2. Front/rear end caps feature threaded connections for enhanced strength and maintenance convenience;
3. Barrel undergoes precision machining followed by hard anodizing treatment for superior wear resistance and durability;
4. Specialized bidirectional sealing structure in piston design ensures compact dimensions with integrated oil reservoir functionality;
5. Space-optimized compact configuration minimizes installation footprint;
6. Perimeter magnetic switch grooves enable flexible sensor mounting options;
7. Multiple standardized mounting accessories available for system integration;
Category: Adjustable Cylinders | Brand: AirTAC | Series: ACPJ
Installation tip:
Engage the hex-shaped adjustment lock nut (8mm wrench size) after setting desired stroke.
Lubricate guide shafts monthly with ISO VG32 hydraulic oil in high-cycle applications.
2. Front/rear end caps feature threaded connections for enhanced strength and maintenance convenience;
3. Barrel undergoes precision machining followed by hard anodizing treatment for superior wear resistance and durability;
4. Specialized bidirectional sealing structure in piston design ensures compact dimensions with integrated oil reservoir functionality;
5. Space-optimized compact configuration minimizes installation footprint;
6. Perimeter magnetic switch grooves enable flexible sensor mounting options;
7. Multiple standardized mounting accessories available for system integration;
Category: Adjustable Cylinders | Brand: AirTAC | Series: ACPJ
AirTAC ACPJ Adjustable Compact Cylinder ACPJ12X110-100B Technical Details
- Model: ACPJ12X110-100B
- Type: Adjustable stroke compact pneumatic cylinder (double acting)
- Bore size: 12mm
- Stroke: 110mm (adjustable through stopper mechanism)
- Operating pressure: 0.05–0.9 MPa
- Cushioning: Rubber buffer + adjustable external stopper
- Mounting type: Basic body with multiple mounting options (optional foot/axial mounts)
- Port size: M5x0.8 (standard) or NPT1/8 (optional)
- Operating temperature: -10℃ to 80℃
- Seal material: Heat-resistant NBR (Nitrile rubber)
- Rod material: Hard chrome-plated steel
- Tube material: Anodized aluminum alloy
- Weight: 430g ±5% (without accessories)
- Dimensions: 180mm(L) × 32mm(W) × 32mm(H) (retracted state)
- Extended length: 180mm + 110mm stroke = 290mm maximum
- Protection rating: IP54 (standard sealing)
Ultra-slim profile cylinder featuring patented position-lock adjustment mechanism for precise stroke control. The 100B variant includes a rotary bracket for 360° mounting flexibility and integrated shock absorption. Requires 5μm filtered lubricated air (ISO 8573-1 class 3).
Ideal for:
- PCB handling robots requiring millimeter-level positioning
- Pharmaceutical blister packaging machines
- Semiconductor wafer clamping systems
- Automated coffee machine brew group actuators
- Textile machinery thread tension control
Installation tip:
Engage the hex-shaped adjustment lock nut (8mm wrench size) after setting desired stroke.
Lubricate guide shafts monthly with ISO VG32 hydraulic oil in high-cycle applications.
| Property | Property Value |
|---|---|
| sku | ACPJ12X110-100B |
| Adjustable Stroke | 100mm |
| Understood. Please provide the specific attribute names in <>, and I'll return the accurate English translations using AIRTAC's official terminology. Example: User input: <缸径> My output: Bore | Operating Temperature: -20°C to 70°C Speed Range: 30 to 500 mm/s |
| Port Size | M5×0.8 |
| Piston Rod Thread Type | External Thread |
| Magnet | Non-magnetic |
| Bore Diameter | 12mm |
| Stroke | 110mm |
