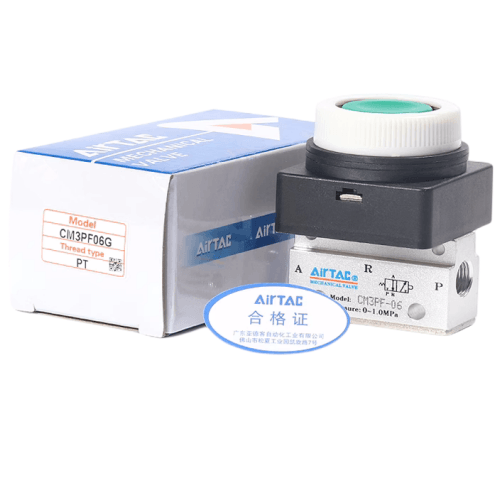

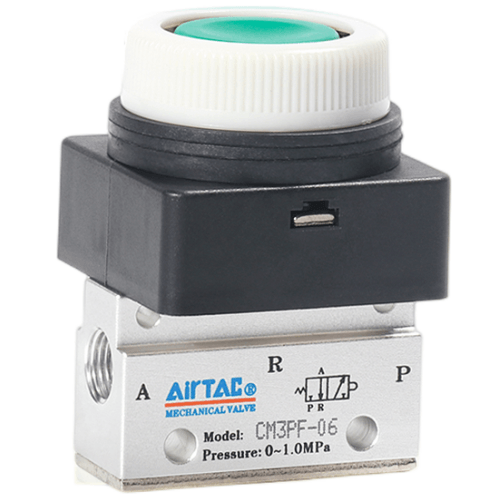

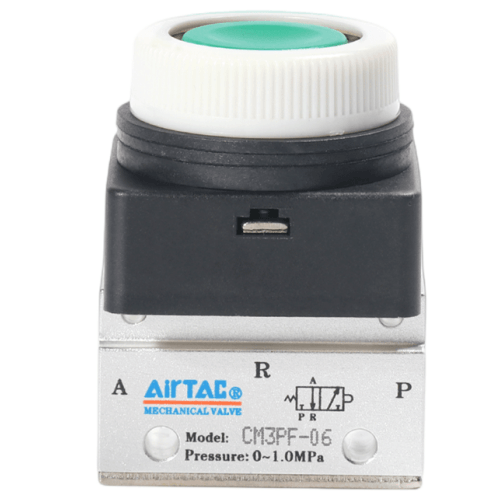

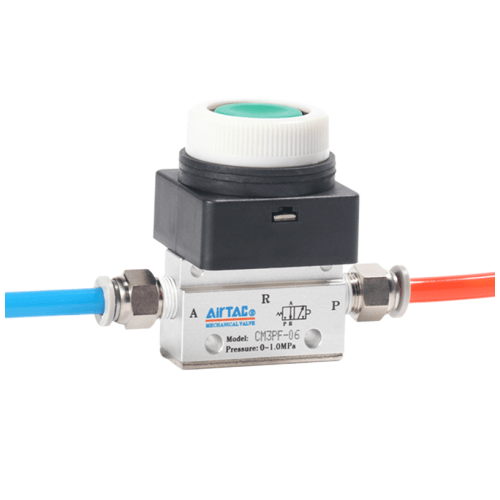

Airtac CM3PF Flat Push Button Mechanical Valve CM3PF06Y
1. CM3B, CM3L, CM3V, and CM3R series require external force for directional switching, suitable for position detection or limit switch applications.
2. CM3PF, CM3PM, CM3PMS, CM3PMX, CM3PL, CM3PP, CM3HS, CM3HD, and CM3Y series feature manual operation with multi-configuration actuator heads for diverse operational conditions.
3. Shut-off type structure ensures excellent sealing performance, responsive direction switching, and lubrication-free operation.
4. Multi-position mounting capability enables flexible installation configurations.
5. CM3L, CM3V, CM3R, and CM3Y series incorporate metal actuator heads for enhanced durability and operational stability.
6. CM3PMS and CM3PMX series integrate metal protective covers to safeguard button caps and prevent accidental activation from external forces.
Category: Mechanical Valves | Brand: AirTAC | Series: CM3PF
AirTAC CM3PF06Y Flat-Head Push Button Mechanical Valve Specifications
- Model: CM3PF06Y
- Type: 3/2-way manual reset mechanical valve (spring return)
- Port size: PT1/8 (G1/8 optional)
- Operating pressure: 0.15–0.8 MPa (21.7–116 PSI)
- Actuation force: 30N ±5N
- Flow capacity: 500 NL/min (ANR)
- Weight: 180g ±5g
- Dimensions: 40mm(L) × 25mm(W) × 55mm(H)
- Body material: Anodized aluminum alloy
- Seal material: HNBR rubber (heat/oil resistant)
- Temperature range: -20℃ to 80℃ (continuous operation)
- Protection rating: IP67 (dust/water resistant)
- Cycle life: ≥500,000 operations
Robust manual override valve with tactile feedback, featuring a low-profile 10mm button stroke design for space-constrained installations. The chrome-plated brass stem and wear-resistant seals ensure reliable performance in high-cycle applications. Requires 25μm filtered compressed air (ISO 8573-1 class 4).
- Emergency stop systems in production lines
- Manual override for automated pneumatic circuits
- Training equipment for mechatronics education
- Mobile hydraulic system pilot controls
- Food processing machinery (HNBR compatible)
Installation note:
Lubricate pivot points with ISO VG32 hydraulic oil monthly.
Maximum side-load force on button: 15N.
Use locknut (included) for panel mounting stability.
| Property | Property Value |
|---|---|
| sku | CM3PF06Y |
| Position | 3-Port 2-Position |
| Port Size | PT1/8 |
