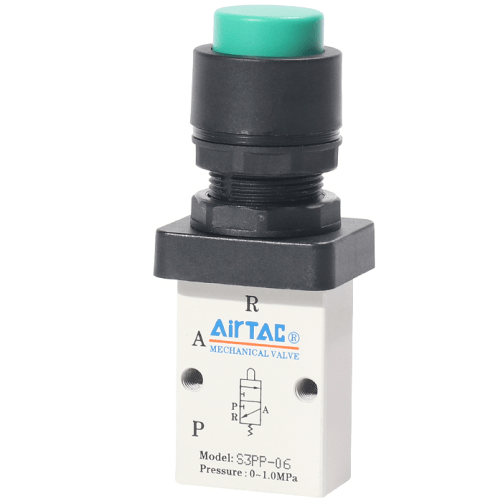

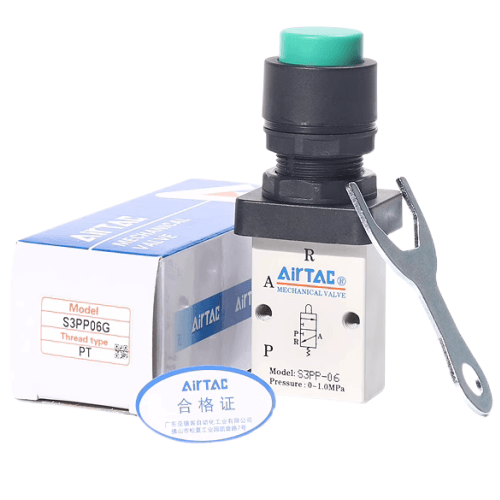

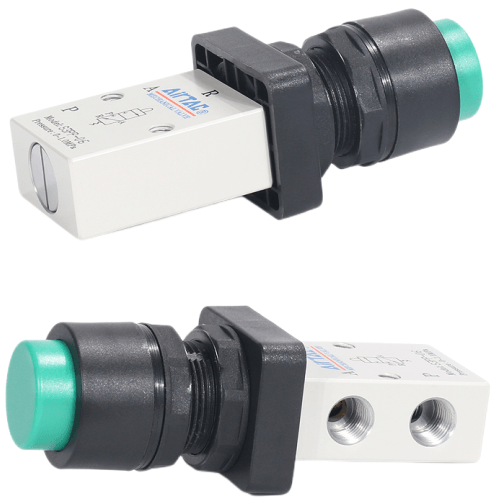

Airtac S3PP Convex Head Push-button Mechanical Valve S3PP06R
2. The S3PF, S3PM, S3PP, S3PL, S3Y, S3HS, S3C, and S3D series feature manual operation with diversified actuator head configurations to accommodate varied application requirements.
3. Equipped with a poppet valve structure for excellent sealing performance, these valves ensure smooth directional switching without requiring lubrication.
4. Supports multi-position mounting orientations for simplified integration and operational flexibility.
5. Robust metal actuator heads in S3C, S3D, S3Y, S3R, and S3L series enhance longevity and deliver reliable, stable performance in demanding environments.
Category: Mechanical Valves | Brand: Airtac | Series: S3PP
AirTAC S3PP06R Push Button Mechanical Valve Specifications
- Model: S3PP06R
- Type: 3/2-way push-button operated mechanical valve (monostable)
- Port size: PT1/8 (G1/8 optional)
- Operating pressure: 0.15–0.8 MPa (21.7–116 PSI)
- Operating medium: Filtered compressed air (max 50μm particles)
- Flow capacity: 450 NL/min (Cv≈0.45)
- Actuation force: 25N ±3N
- Valve body material: Nickel-plated brass
- Seal material: High-grade NBR (Nitrile rubber)
- Temperature range: -20℃ to 80℃ (-4°F to 176°F)
- Weight: 215g ±5g
- Dimensions: 48mm(L) × 34mm(W) × 42mm(H)
- Mounting style: Panel mount (6mm panel thickness max)
- Button stroke: 4mm with tactile feedback
- Cycle life: ≥500,000 operations
Manual override valve featuring ergonomic mushroom-head button with emergency stop capability. The chrome-plated brass construction ensures corrosion resistance in humid environments. Integrated O-ring groove allows direct panel mounting without additional hardware. Requires manual reset after actuation.
- Emergency stop systems in assembly lines
- Manual override for automated machinery
- Pneumatic training equipment controls
- Textile machine manual feed systems
- Food processing equipment safety stations
Installation note:
Ensure button axis alignment with operator's natural hand position.
Lubricate stem quarterly with ISO VG32 hydraulic oil.
Not suitable for continuous duty cycling applications.
| Property | Property Value |
|---|---|
| sku | S3PP06R |
| Position | 3-Port 2-Position |
| Port Size | PT1/8 |
