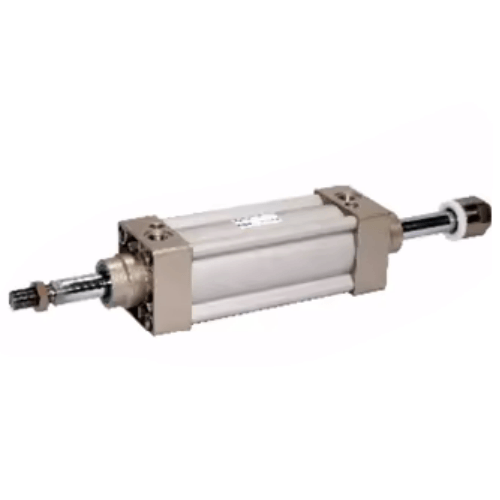

Airtac SIJ80 Dual Axis Adjustable Cylinder SIJ80X80-100S
The AirTAC Airtac SIJ80 Dual Axis Adjustable Cylinder SIJ80X80-100S is a double-acting ISO 15552 (orig. ISO 6431) profile-barrel cylinder with a Ø80mm bore and 80mm stroke, G3/8 air ports and adjustable end cushioning. This model is discontinued — the drop-in replacement is the SAIJ80X80-100S, which matches its ISO interface, bore, stroke, force and mounting.
- BoreØ80 mm
- Stroke80 mm
- Port sizeG3/8
- Acting typeDouble acting
- Rod threadM20×1.5
- StatusDiscontinued → SAIJ80X80-100S
About the Airtac SIJ80 Dual Axis Adjustable Cylinder SIJ80X80-100S
The AirTAC SIJ80X80-100S is a discontinued double-acting single-rod ISO 15552 adjustable-stroke cylinder. An external stop screw lets you trim the extend stroke by up to 100 mm on-site, yielding a usable 0-80 mm extend window from the 80 mm nominal maximum. The 80 mm bore delivers 2513 N push and 2268 N pull at 0.5 MPa via a G3/8 port, with a 36 mm adjustable air cushion at each end. This unit includes a piston magnet (-S) for legacy CS1-B/DS1-B switches.
As the SIJ family is end-of-life, the exact drop-in replacement is the SAIJ80X80-100S, retaining the same interface, force, and mounting. The SAIJ upgrade introduces a two Y-shaped one-way piston seal for lower start-up pressure and longer life. For sizing, the safe working load is roughly 1508 N (60% of the 2513 N @0.5 MPa figure), translating to a 128 kg vertical lift with a 2:1 margin. Remember the stop screw sets end position only; it is not a load lock, so use an external rod lock or SAIL/BSAI variant for held loads.
Airtac SIJ80 Dual Axis Adjustable Cylinder SIJ80X80-100S Technical Specifications
| Model | Airtac SIJ80 Dual Axis Adjustable Cylinder SIJ80X80-100S |
|---|---|
| Series | SI ISO 15552 profile cylinder (discontinued) |
| Replacement | SAIJ80X80-100S |
| Bore size | Ø80 mm |
| Stroke | 80 mm |
| Acting type | Double acting |
| Port size | G3/8 |
| Rod thread | M20×1.5 |
| Fluid | Air (filtered by 40µm element) |
|---|---|
| Operating pressure | 0.15 – 1.0 MPa |
| Proof pressure | 1.5 MPa |
| Temperature | -20 to +70 °C |
| Speed range | 30 – 800 mm/s |
| Cushion | Adjustable, 36 mm |
| Max standard stroke | Up to 1500 mm |
Specifications follow the official AirTAC SI datasheet (now discontinued). The SAIJ80X80-100S carries the same ISO 15552 ratings. Confirm against the product label before installation. Thread options: PT / G / NPT.
Theoretical Output Force (Ø80mm)
| Pressure | Push force | Pull force |
|---|---|---|
| 0.5 MPa | 2513 N | 2268 N |
| 0.7 MPa | 3519 N | — |
| Max (@1.0 MPa) | 513 kgf | |
The SAIJ80X80-100S produces the same force from the same bore — a true drop-in on output. Actual usable force is lower than theoretical; size with a margin.
Model Code: Airtac SIJ80 Dual Axis Adjustable Cylinder SIJ80X80-100S
| SI | ISO 15552 profile-barrel cylinder (discontinued). |
|---|---|
| 80 | Bore size in mm. |
| ×80 | Stroke length in mm. |
| -S | Optional built-in magnet for sensor position sensing. |
Legacy SI-family variants: SID (double rod), SIJ (adjustable stroke) — each maps to its SAI equivalent (SID→SAID, SIJ→SAIJ). Rod material: carbon steel (blank) / SUS420J2 (A) / SUS304 (B).
Where the Airtac SIJ80 Dual Axis Adjustable Cylinder SIJ80X80-100S Is Used
Variable Depth Forming Press
Needs field stroke tuning to set precise material indentation. The 100 mm adjust window allows operators to dial the exact extend position on-site for different material thicknesses without swapping cylinders.
Adjustable Package Diverter
Requires altering the extend reach to accommodate changing box sizes on a line. Trimming the extend stroke by up to 100 mm provides the flexibility to push varying carton widths accurately.
Multi-Position End Stop Gate
Demands an external stop to set intermediate flow gate positions. The adjustable screw creates a hard mechanical end position for specific routing configurations, replacing complex multi-position setups.
Replacing the Airtac SIJ80 Dual Axis Adjustable Cylinder SIJ80X80-100S with the SAIJ80X80-100S
To replace the discontinued SIJ80X80-100S, order the drop-in SAIJ80X80-100S, matching the 80 mm bore, 80 mm nominal stroke, 100 mm adjust window, and -S magnet. When sizing both ways, the neighboring 63 mm bore yields 1559 N push @0.5 MPa, while the 100 mm bore yields 3927 N push @0.5 MPa. The 100 mm adjust window allows on-site extend tuning down to 0 mm without changing mounts. Standard FA, LB, or TC ISO 15552 mounts reuse existing holes. The -S suffix provides a piston magnet for legacy CS1-B/DS1-B switches (the SAIJ uses current AirTAC switches). For strokes >=300 mm, verify side-load guidance to prevent rod binding. The stop screw sets end position but does not lock; for load holding on air loss, specify an external rod lock, pilot-operated check valve, or SAIL/BSAI variant.
Replacement checklist
- ✓ Same ISO 15552 interface → SAIJ80X80-100S
- ✓ Same bore / stroke / force
- ✓ Port/thread type (PT/G/NPT)
- ✓ Magnet (-S) for sensors?
- ✓ Mounting reused (FA/FB/CA/CB/CR/LB/TC)
Airtac SIJ80 Dual Axis Adjustable Cylinder SIJ80X80-100S FAQ
Yes, the SIJ80X80-100S is discontinued. The exact drop-in replacement is the SAIJ80X80-100S. It shares the same ISO 15552 interface, 80 mm bore, 80 mm stroke, 100 mm adjust window, G3/8 port, and mounting options, while adding an upgraded two Y-shaped one-way piston seal for longer life.
The 80 mm bore provides 2513 N push and 2268 N pull @0.5 MPa, 3518 N push @0.7 MPa, 4523 N push @0.9 MPa, and a 513 kgf max @1.0 MPa. The external stop screw window is 100 mm, allowing you to trim the 80 mm nominal extend stroke down to 0 mm on-site. The stop sets end position only and is not a load lock.
