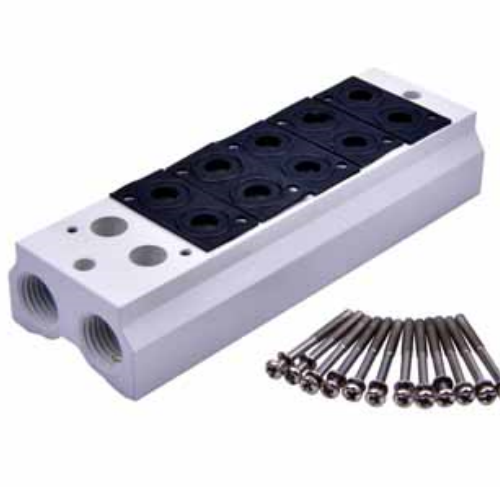

Airtac 300M Solenoid Valve Manifold 300M-2F
$16.25
Regular price
$23.75
Sale!
Unit price
per
sold in last hours
customers are viewing this product
Couldn't load pickup availability
SKU:
In stock
SKU:
300M-2F
Product type:
DELIVERY
Estimated delivery between
and
Guarantee Safe Checkout
Description
1、Enables integration of directional control valves from the same series into a compact manifold assembly, achieving space optimization and cost-effectiveness;
2、Centralized air supply/exhaust ports and unified wiring layout simplify troubleshooting during system failures;
3、Modular design with high scalability allows flexible combination and future expansion of connected directional control valves;
Category: Solenoid Valve Base , Brand: AIRTAC , Series: 300M
Installation protocol:
Use M4x12 mounting screws with 1.2-1.5Nm torque. Apply thread sealant
ONLY on exhaust ports. Perform air-tightness test at 0.6MPa for 3 minutes
before full operation.
2、Centralized air supply/exhaust ports and unified wiring layout simplify troubleshooting during system failures;
3、Modular design with high scalability allows flexible combination and future expansion of connected directional control valves;
Category: Solenoid Valve Base , Brand: AIRTAC , Series: 300M
AirTAC 300M-2F Manifold Base Technical Specifications
- Model: 300M-2F
- Type: Modular valve mounting base (2-station)
- Port size: PT1/8 (G1/8 thread standard)
- Material: PA66+30% glass fiber reinforced
- Port configuration: 5 ports (1P-2A-2B-R1-R2)
- Mounting pitch: 16mm modular spacing
- Max operating pressure: 1.0 MPa
- Temperature resistance: -20℃ to 80℃
- Seal material: HNBR (hydrogenated nitrile)
- Weight: 180g ±5g
- Dimensions: 72mm(L) × 28mm(W) × 50mm(H)
- Surface roughness: Ra3.2μm (air passageways)
- Compatible valves: 3V1/3V2/4V series solenoid valves
Multi-channel pneumatic distribution base with precision-molded flow channels, designed for building compact valve clusters. Features integrated silencer ports (R1/R2) and anti-vibration mounting slots. Certified for ISO 15407-1 standard with 500,000+ cycle durability.
Typical Configurations:
- Centralized control systems for packaging line actuators
- Modular pneumatic stations in automotive assembly robots
- Multi-zone vacuum handling systems
- Compact valve islands with IO-Link integration
Installation protocol:
Use M4x12 mounting screws with 1.2-1.5Nm torque. Apply thread sealant
ONLY on exhaust ports. Perform air-tightness test at 0.6MPa for 3 minutes
before full operation.
Interface Standard:
Matches ISO 5599-1 modular valve dimensions. Requires AirTAC MSQ series
manifold gaskets (sold separately) for multi-block stacking. Not compatible
with 20mm pitch valve systems.
| Property | Property Value |
|---|---|
| sku | 300M-2F |
