Airtac 300M Solenoid Valve Manifold 300M-6F
Genuine AirTAC valve manifold, order code 300M-6F from the 4AM range. The options this code selects are decoded below; series data follow the official AirTAC catalog.
- Manifold300M (for 4A300)
- Stations6 stations
- ThreadPT
- Models100M / 200M / 300M / 400M
- For valves4A100 / 4A200 / 4A300 / 4A400
- Maximum stations16 / 16 / 12 / 8
- No minimum order. A single piece can be ordered.
- Ready in 3–5 business days. That is the time we take to process the order and hand it to the carrier. Transit time after that depends on the destination.
About the Airtac 300M Solenoid Valve Manifold 300M-6F

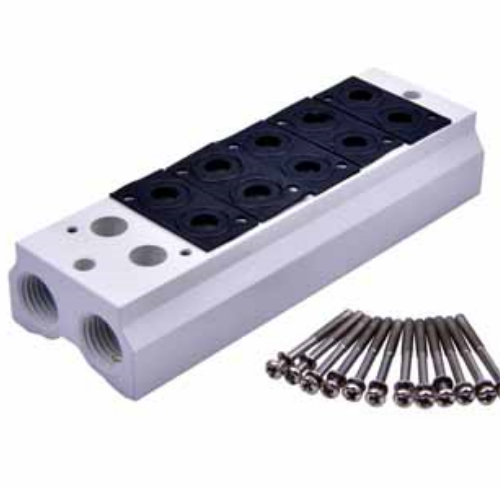

Six 4A300 air-piloted valves share one supply and one exhaust on the AirTAC 300M-6F, the PT-threaded six-station version of the 300M manifold family. A single 3/8 inch supply port P feeds the whole bank, so each valve drops its individual inlet connection and faults become easier to trace station by station.
Length A follows the catalog formula of 52 mm for the first station plus 28 mm per extra station, which gives 192 mm at six stations. The order includes the manifold, seals and screws; the fluid must be air filtered to 40 um and the working temperature range is -20 to +70 C.
Airtac 300M Solenoid Valve Manifold 300M-6F Technical Specifications
| Order code | 300M-6F |
|---|---|
| Product | Valve Manifold |
| Manifold | 300M (for 4A300) |
| Stations | 6 stations |
| Thread | PT |
| Models | 100M / 200M / 300M / 400M |
|---|---|
| For valves | 4A100 / 4A200 / 4A300 / 4A400 |
| Maximum stations | 16 / 16 / 12 / 8 |
| Supply port P | 1/4" / 1/4" / 3/8" / 1/2" |
| Length A | 100M 38 + 19 × (n-1) mm; 200M 44 + 23 × (n-1) mm; 300M 52 + 28 × (n-1) mm; 400M 61 + 35 × (n-1) mm |
| Fluid | Air, filtered to 40 µm |
| Temperature | -20 to +70 °C |
| Included | Manifold, seals and screws |
| Blank plate | Kit P-□00M-R2 (separate) |
Source: AirTAC 4A manifold datasheet (p.124), ordering code, specifications and dimensions.
How to choose
Inside the 300M family your neighbours are 300M-5F and 300M-7F: take 300M-5F for five valves and 300M-7F once a seventh unit is planned, because every spare station would otherwise need to be closed with the separate P-300M-R2 blank plate kit. Compared with the 200M, which serves the smaller 4A200 valves on a 1/4 inch supply, the 300M carries 4A300 valves on a 3/8 inch feed and still allows up to 12 stations.
Applications
Multi-cylinder packaging machines
Run the 4A300 valves that drive sealing, eject and clamp cylinders from one 192 mm bank instead of six separate inlet lines.
Conveyor diverter and stopper control
Each diverter or stopper gets its own 4A300 valve station while sharing the single 3/8 inch supply port of the 300M-6F.
Clamping clusters on production fixtures
Group six fixture-clamp circuits on one PT-threaded bank so leaks and faults can be traced station by station.
FAQ
What are the key figures of the AirTAC 300M-6F?
It is a 300M manifold for 4A300 valves with 6 stations and PT threads, a 3/8 inch supply port P, and a length A of 192 mm (52 mm base plus 28 mm per extra station). The series maximum is 12 stations, fluid is air filtered to 40 um, and the temperature range is -20 to +70 C.
What if I will mount fewer than six valves right now?
Close each unused station with the P-300M-R2 blank plate kit, which is ordered separately. The 300M-6F itself ships as a set of manifold, seals and screws.
