Airtac 300M Solenoid Valve Manifold 300M-7F
Genuine AirTAC valve manifold, order code 300M-7F from the 4AM range. The options this code selects are decoded below; series data follow the official AirTAC catalog.
- Manifold300M (for 4A300)
- Stations7 stations
- ThreadPT
- Models100M / 200M / 300M / 400M
- For valves4A100 / 4A200 / 4A300 / 4A400
- Maximum stations16 / 16 / 12 / 8
- No minimum order. A single piece can be ordered.
- Ready in 3–5 business days. That is the time we take to process the order and hand it to the carrier. Transit time after that depends on the destination.
About the Airtac 300M Solenoid Valve Manifold 300M-7F

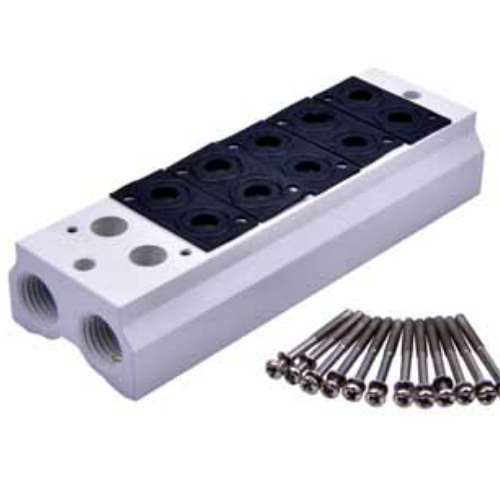

Seven stations in one bank: the AirTAC 300M-7F groups seven 4A300 valves behind a single 3/8 inch supply port and a PT-threaded body, replacing seven individual inlet lines with one shared feed and one shared exhaust.
Its length follows the 300M formula of 52 mm for the first station plus 28 mm per extra station, so seven stations measure 220 mm overall. Seals and screws come with the manifold in the same order; the fluid is air filtered to 40 um and the working range is -20 to +70 C.
Airtac 300M Solenoid Valve Manifold 300M-7F Technical Specifications
| Order code | 300M-7F |
|---|---|
| Product | Valve Manifold |
| Manifold | 300M (for 4A300) |
| Stations | 7 stations |
| Thread | PT |
| Models | 100M / 200M / 300M / 400M |
|---|---|
| For valves | 4A100 / 4A200 / 4A300 / 4A400 |
| Maximum stations | 16 / 16 / 12 / 8 |
| Supply port P | 1/4" / 1/4" / 3/8" / 1/2" |
| Length A | 100M 38 + 19 × (n-1) mm; 200M 44 + 23 × (n-1) mm; 300M 52 + 28 × (n-1) mm; 400M 61 + 35 × (n-1) mm |
| Fluid | Air, filtered to 40 µm |
| Temperature | -20 to +70 °C |
| Included | Manifold, seals and screws |
| Blank plate | Kit P-□00M-R2 (separate) |
Source: AirTAC 4A manifold datasheet (p.124), ordering code, specifications and dimensions.
How to choose
Count your 4A300 valves before ordering: 300M-6F covers six and 300M-8F eight, while the 300M-7F matches a seven-valve layout exactly so no P-300M-R2 blank plates are needed. Against the 400M, which serves the larger 4A400 valves through a 1/2 inch port and tops out at 8 stations, this code keeps the 4A300 valves and leaves headroom to grow toward the 300M maximum of 12 stations.
Applications
Assembly station punch and press circuits
Give each punch or press cylinder its own 4A300 valve while all seven share the single 3/8 inch supply of the 300M-7F.
Sorting gate banks in distribution lines
Seven pneumatic gates or kickers on one PT-threaded valve bank keep the control side of a sorting line compact.
Multi-circuit leak and functional test rigs
Feed several test circuits from one manifold, with one shared exhaust making fault tracing across stations simpler.
FAQ
What are the key figures of the AirTAC 300M-7F?
It is a 300M manifold for 4A300 valves with 7 stations and PT threads, a 3/8 inch supply port P, and a length A of 220 mm (52 mm plus 28 mm per extra station). The series allows up to 12 stations, fluid is air filtered to 40 um, and the temperature range is -20 to +70 C.
Why choose 300M-7F over a bigger manifold with blank plates?
Every unused station on a larger manifold has to be closed with a separate P-300M-R2 blank plate kit. Ordering the exact seven-station 300M-7F avoids those kits and gives a shorter 220 mm body than the eight-station version.
