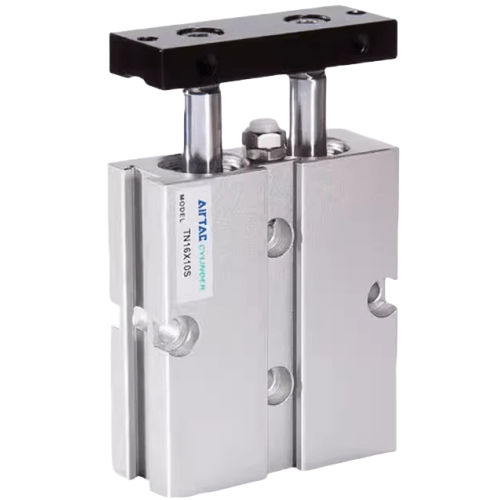

Airtac B06-TN Battery-Specific Cylinder B06-TN25X100S
AirTAC B06-TN25X100S Battery-Optimized Cylinder Specifications
- Model: B06-TN25X100S
- Type: Compact ISO battery-driven cylinder (dual-action)
- Bore size: 25mm (Φ25)
- Stroke: 100mm ±1.5mm tolerance
- Operating pressure: 0.05–0.7 MPa (ultra-low pressure operable)
- Temperature range: -10℃ to 80℃ (extended thermal stability)
- Cushioning: Adjustable rubber buffer + shock absorber pad
- Port size: M5x0.8 dual ports (standard UNF thread)
- Body material: Aluminum alloy (anodized surface)
- Seal material: Polyurethane (low friction coefficient)
- Mounting type: Basic front flange (AF series compatible)
- Weight: 1.2kg ±3% (including standard accessories)
- Dimensions: 180mm(L) × 34mm(W) × 34mm(H) (max extended length)
- Rod thread: M6x1.0 external thread (stainless steel)
- Repeat accuracy: ±0.1mm (under rated pressure)
Specialized pneumatic actuator engineered for battery-powered systems requiring ultra-low consumption. Features self-lubricating guides and corrosion-resistant coating, achieving 500km maintenance-free operation. Includes built-in magnetic piston for position sensing compatibility (sensor sold separately).
- Mobile robotic end-effector actuation
- Portable medical equipment mechanisms
- Solar-powered agricultural actuators
- EV battery pack locking systems
- Light-duty CNC tool changers
Operation tip:
Maintain 0.5-1mm rod end play during installation. Use only silicone-based lubricants.
For battery systems, pair with 0.5W~1.5W low-power valves to optimize energy efficiency.
| Property | Property Value |
|---|---|
| sku | B06-TN25X100S |
