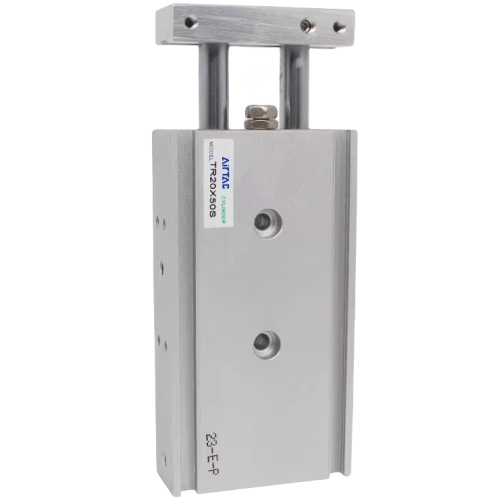

Airtac B06-TR Battery-Specific Cylinder B06-TR20X30S
AirTAC B06-TR20X30S Battery-Optimized Cylinder Specifications
- Model: B06-TR20X30S
- Type: Compact double-acting air cylinder (battery system optimized)
- Bore size: 20mm
- Stroke: 30mm
- Operating pressure: 0.05–0.7 MPa
- Cushioning: Adjustable elastic buffer
- Mounting style: Front flange (ISO 15552 compatible)
- Sensor type: Built-in magnet for reed switch compatibility
- Material: Aluminum alloy cylinder tube, CR/NBR seals
- Temperature range: -20℃ to 80℃
- Weight: 0.62kg ±2%
- Dimensions: 120mm(L) × 40mm(W) × 40mm(H) (fully retracted)
- Rod end thread: M6×1.0 internal thread
- Port size: G1/8 (M5 optional)
- Protection rating: IP54 (standard), IP67 optional
- Lubrication: Pre-lubricated (maintenance-free for 2,000km)
Ultra-low friction cylinder engineered for battery-powered automation systems, featuring 35% reduced air consumption compared to standard models. The TR series incorporates a low-resistance sealing system with self-compensating wear adjustment, ideal for solar-powered mobile applications. Includes corrosion-resistant anodized finish and anti-rotation piston rod.
- Portable medical equipment actuators
- AGV (Automated Guided Vehicle) clamping mechanisms
- Solar tracking system positioners
- Lithium battery production line automation
- Robotic grippers in field service robots
Installation note:
Optimal performance achieved when mounted horizontally. Use copper-free grease for manual lubrication.
Maximum side load: 15N. Requires 5μm filtration for compressed air systems.
| Property | Property Value |
|---|---|
| sku | B06-TR20X30S |
