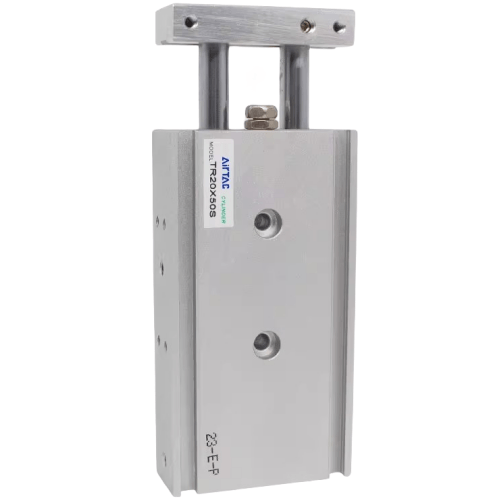

Airtac B06-TR Battery-Specific Cylinder B06-TR20X60S
AirTAC B06-TR20X60S Battery-Optimized Cylinder Specifications
- Model: B06-TR20X60S
- Series: B06-TR (Battery Application Series)
- Bore size: 20mm
- Stroke: 60mm
- Installation type: Standard (Basic mount)
- Buffer type: Rubber cushion (adjustable both ends)
- Operating pressure: 0.05–0.7 MPa
- Ambient temperature: -20℃ to 80℃
- Piston speed: 50–800 mm/s
- Cylinder material: Aluminum alloy barrel, stainless steel piston rod
- Seal material: NBR (nitrile rubber)
- Weight: 0.85 kg (with standard accessories)
- Dimensions: 136mm(L) × 52mm(W) × 52mm(H)
- Sensor compatibility: Built-in magnet for magnetic switch installation
- Protection rating: IP65 (dust-tight & water jet resistant)
- Air port size: M5x0.8 (standard) with optional NPT1/8 adapters
Engineered for battery-powered pneumatic systems, this cylinder features ultra-low starting friction (≤0.8N) and optimized air consumption. The double-piston seal design ensures zero leakage during standby, critical for energy-sensitive applications. Integrated mounting slots allow direct installation without additional brackets.
- Portable medical equipment (e.g., mobile oxygen concentrators)
- Battery-driven automation carts in cleanrooms
- Solar-powered agricultural actuators
- Robotic grippers in field service robots
- Mobile laboratory analysis systems
Operational Guidance:
For optimal battery life, maintain 0.3–0.5 MPa operating pressure.
Lubricate every 500km stroke distance using ISO VG32 hydraulic oil.
Avoid vertical downward piston orientation in dusty environments.
| Property | Property Value |
|---|---|
| sku | B06-TR20X60S |
