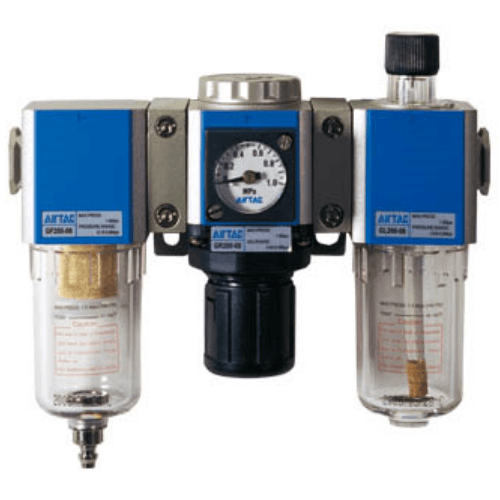

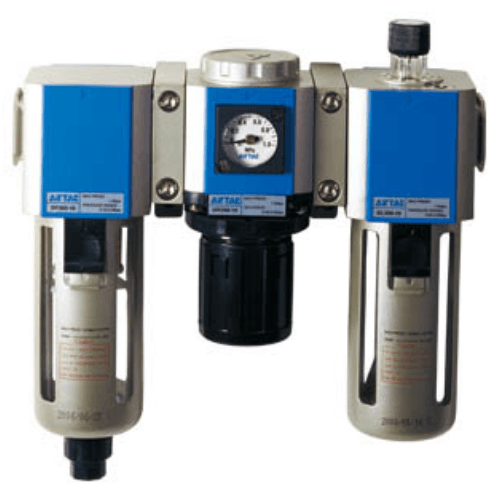

The AirTAC GC FRL Unit GC300C15MF1WK is a genuine G-series three-unit F.R.L. combination: a separate filter, a separate regulator and a separate lubricator assembled as one air-preparation station. It has See datasheet ports, a 40 µm element, a differential-pressure drain and regulates 0.15 - 0.9 MPa (20 - 130 psi).
GC300C15MF1WK is the fully specified build of this size 300 G-series F.R.L. set: a filter, regulator and lubricator on a 1/2 in PT supply line, fitted with the 5 um filter element (W) and a reverse/check valve at the inlet (K). The check valve blocks backflow through the unit and helps hold the regulated pressure downstream if the supply is interrupted, while the 5 um element provides the finer of the two catalogue filtration grades. A manual drain is fitted on the filter bowl, the square gauge is scaled in MPa, and the manual-drain regulator adjusts over 0.05-0.9 MPa (7-130 psi).
This is a genuine AirTAC part. The G-series runs from size 200 to 600 with ports from 1/8 to 1 in; related options include G (BSPP) or NPT threads, automatic drains, the standard 40 um element, and external round gauges in psi or bar scale. Maximum working pressure is 1.0 MPa (145 psi), temperature range is -5 to 70 C (non-freezing), and size 300 bowls are polycarbonate. Flow is published as curves rather than a single rating, so we confirm flow and datasheet figures on request.
| Model | Airtac GC FRL Unit GC300C15MF1WK |
|---|---|
| Series | GC300 F.R.L. combination |
| Composition | Filter + regulator + lubricator (3 units) |
| Port size | See datasheet (PT thread) |
| Filtering grade | 40 µm |
| Regulating range | 0.15 - 0.9 MPa (20 - 130 psi) |
| Pressure type | Standard type |
| Fluid | Compressed air |
|---|---|
| Max. working pressure | 1.0 MPa (145 psi) |
| Temperature range | -5 to +70 °C (unfreeze) |
| Drain type | Differential-pressure drain |
| Bowl material | PC |
| Pressure gauge | Fitted — factory standard, Factory standard scale |
| Reflux valve | Not fitted |
Specifications follow the official AirTAC G-series air-preparation data. The regulating band is set by the drain type: automatic and differential-pressure drains regulate 0.15 - 0.9 MPa, a manual drain regulates 0.05 - 0.9 MPa. Standard type, regulating 0.15 - 0.9 MPa (20 - 130 psi). The combination has no separate bracket code — the three units couple together with their own mounting hardware. Flow curves, weight and outline dimensions are not published in our data set — ask us and we will confirm from the factory datasheet.
| GC300 | G-series F.R.L. combination, 300 body — sets the port range. |
|---|---|
| C1 | Port size See datasheet. This body offers 08 = PT1/4", 10 = PT3/8", 15 = PT1/2". |
| (blank) | Drain: Differential-pressure drain — this also sets the regulating band (0.15 - 0.9 MPa (20 - 130 psi)). |
| (blank) | Standard type. Blank is standard, L is the low-pressure type. |
| (blank) | Pressure gauge fitted (blank). |
| (blank) | Gauge shape: Factory standard. C is round, F is square. |
| (blank) | Gauge scale: Factory standard. 1 is MPa, 2 is psi, 3 is bar. |
| (blank) | Filtering grade 40 µm. Only 40 µm (blank) and 5 µm (W) exist. |
| (blank) | PT thread. PT is the default; G is BSPP and T is NPT. |
| (blank) | No reverse-flow valve (the default). |
Field order is size, port, drain, type, gauge, shape, scale, grade, thread, reflux — there is no bracket position on a combination. Constituent units, orderable separately as spares: GF300-C1 filter, GR300-C1 regulator and GL300-C1 lubricator.
A GC is three separate units, so the filter and the regulator can each be serviced or replaced on their own. A GFC is the two-unit set, where filtering and regulating share one body — shorter, but the two functions come as one part. Both filter, regulate and lubricate.
| This model | GC300 · See datasheet · 40 µm |
|---|---|
| One size down | GC200 |
| One size up | GC400 |
| Two-unit equivalent | GFC300-C1 |
| Build order | Filter → regulator → lubricator |
Serves the product-dispensing valves and hold-down cylinders on a filling line; the 5 um element is specified for finer pre-filtration and the check valve holds set pressure at the head when the main is vented.
Feeds a dedicated bench outlet for die grinders and drills in a maintenance workshop, with the check valve keeping the regulated setting stable if an upstream valve is closed.
Supplies the interlocked clamp cylinders around an automated press cell; the check valve maintains clamp-side pressure during supply dips while the FRL set cleans, regulates and lubricates the air.
This code combines the two main options in one build: W for the 5 um element where finer pre-filtration is required, and K for the check valve where supply dips must not pull downstream pressure back through the unit. It suits protected circuits on finishing, dosing and clamping duty at size 300 with a 1/2 in PT port. If the MPa gauge scale, PT thread or manual drain do not match your plant, G or NPT threads, psi/bar round gauges, an automatic drain and the 40 um element are all orderable in the same size.
Because G-series flow is published as curves rather than one rated figure, ask us to confirm the unit against your application before ordering.
Quick checklist
The PC bowls must not be cleaned with solvents — wipe them with a dry cloth. The lubricator adds an oil mist downstream of the regulator. If any branch of the line must stay oil-free, take that branch off before the lubricator, or use a GR300-C1 regulator with a GF300-C1 filter on that branch.
Flow for the G-series is published as performance curves, not as a single rated figure, so we will not quote a number blindly. Give us your working pressure and required consumption and we will confirm the sizing from the datasheet on request before you order.
PT is the standard thread for this code, and G (BSPP) or NPT are catalogue options you can specify when ordering - for example, NPT suits US plant piping. It is a specification choice, not a stock arrangement: state the thread you need on the order and the equivalent code is supplied. The 1/2 in port size stays the same either way.
Genuine AirTAC parts produced by AirTAC factory.
Covers non-human-caused product damage.
Standard models are processed and dispatched in 3-5 business days.
Most inquiries answered within 7-8 hours.
Send us the quantity, thread type (PT / G / NPT), gauge scale and destination. We confirm price, availability and lead time — usually within 7-8 hours.
