Airtac GTFR Filter Regulator GTFR20006SJNW
Genuine AirTAC filter regulator, order code GTFR20006SJNW from the GTFR200 range. The options this code selects are decoded below; series data follow the official AirTAC catalog.
- Port1/8" (06)
- Type · gaugeStandard (S) · No gauge (N)
- ConfigurationNo bracket (J) · 5 µm element (W) · PT thread
- Port1/8" (06), 1/4" (08)
- ThreadPT (standard)
- Filter element40 µm (standard), 5 µm (W)
- No minimum order. A single piece can be ordered.
- Ready in 3–5 business days. That is the time we take to process the order and hand it to the carrier. Transit time after that depends on the destination.
About the Airtac GTFR Filter Regulator GTFR20006SJNW

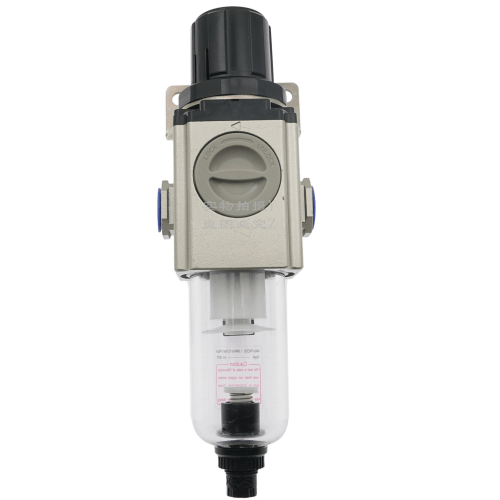

The GTFR20006SJNW is a compact filter regulator from AirTAC's GT200 series, built in the short PC bowl format that keeps the GA200 feature set in a smaller body for tight installation spaces. This code decodes to a 1/8" (06) PT-threaded port, standard pressure type (S), a 5 um filter element (W), no pressure gauge (N) and no mounting bracket (J).
The filter stage drains automatically through the differential plus manual drain, so condensate is expelled while the unit still allows a hands-on purge. Because the W option replaces the standard 40 um element with a 5 um one, the air delivered downstream is noticeably cleaner, which protects small valves and cylinders fed from this unit.
Airtac GTFR Filter Regulator GTFR20006SJNW Technical Specifications
| Order code | GTFR20006SJNW |
|---|---|
| Product | Filter Regulator |
| Port | 1/8" (06) |
| Type · gauge | Standard (S) · No gauge (N) |
| Configuration | No bracket (J) · 5 µm element (W) · PT thread |
| Port | 1/8" (06), 1/4" (08) |
|---|---|
| Thread | PT (standard) |
| Filter element | 40 µm (standard), 5 µm (W) |
| Bowl | Short PC bowl |
| Drain | Differential + manual |
| Fluid | Air |
| Low-pressure (L) version | 0.15 – 0.4 MPa (20 – 58 psi) |
Source: AirTAC Products Catalog 2026A (p.235, PDF01-P0237), GT200 ordering code and specifications.
How to choose
Start from the port size: this code is the 06 body for 1/8" lines, so a 1/4" line calls for the 08 sibling such as GTFR20008SJNW. If you want a pressure gauge mounted on the unit, order GTFR20006SJW instead of this N version, and if your circuit needs reverse-flow protection, GTFR20006SJNWK adds a check valve on top of this same specification. The ordering table also lists G and T thread variants and the low-pressure L type that regulates 0.15 to 0.4 MPa (20 to 58 psi).
Applications
Compact packaging heads
Feeding small pick-and-place valves on packaging machines where the 5 um element keeps fine air passages clean and the gaugeless, bracketless layout saves panel space.
Control cabinet retrofits
Mounting directly onto an existing manifold or frame, since the J option omits the bracket and the short PC bowl body suits shallow enclosures.
1/8" branch circuits
Conditioning air on a 1/8" drop line to a small cylinder or tool, where a 5 um element gives cleaner air than the standard 40 um element.
FAQ
What exactly do I get with GTFR20006SJNW?
An AirTAC GT200 series filter regulator with a 1/8" (06) PT-threaded port, standard pressure type (S), 5 um filter element (W), no pressure gauge (N) and no mounting bracket (J). It uses a short PC bowl with a differential plus manual drain.
Why pick the 5 um element on this code?
The blank element option is 40 um; the W in GTFR20006SJNW upgrades to a 5 um element for cleaner downstream air. If you would rather see the regulated pressure on the unit itself, order the gauge-fitted sibling GTFR20006SJW instead.
