Airtac GTFR Filter Regulator GTFR20006SJW
Genuine AirTAC filter regulator, order code GTFR20006SJW from the GTFR200 range. The options this code selects are decoded below; series data follow the official AirTAC catalog.
- Port1/8" (06)
- Type · gaugeStandard (S) · With gauge (MPa/psi)
- ConfigurationNo bracket (J) · 5 µm element (W) · PT thread
- Port1/8" (06), 1/4" (08)
- ThreadPT (standard)
- Filter element40 µm (standard), 5 µm (W)
- No minimum order. A single piece can be ordered.
- Ready in 3–5 business days. That is the time we take to process the order and hand it to the carrier. Transit time after that depends on the destination.
About the Airtac GTFR Filter Regulator GTFR20006SJW

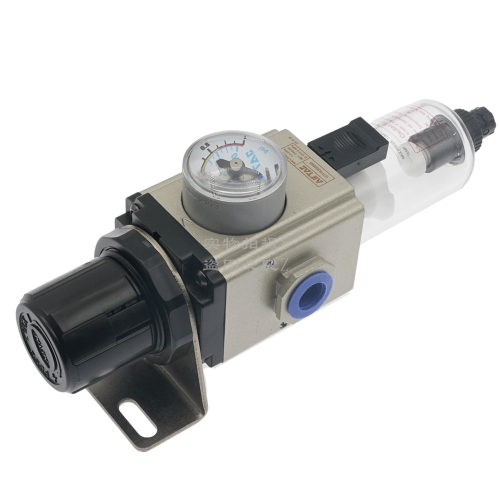

GTFR20006SJW is the gauge-fitted version of the AirTAC GTFR200 filter regulator: a 1/8" (06) PT-threaded unit in the standard pressure type (S) with a 5 um filter element (W), no mounting bracket (J) and a pressure gauge on the unit so the regulated setting can be read directly. The body uses the short PC bowl of the GT200 series, the compact take on GA200.
Air is filtered to 5 um instead of the standard 40 um, giving cleaner supply to sensitive downstream components, while the differential plus manual drain clears condensate from the bowl. With no bracket in this code, the unit is mounted by the panel builder or fitted directly where the 1/8" connection lands.
Airtac GTFR Filter Regulator GTFR20006SJW Technical Specifications
| Order code | GTFR20006SJW |
|---|---|
| Product | Filter Regulator |
| Port | 1/8" (06) |
| Type · gauge | Standard (S) · With gauge (MPa/psi) |
| Configuration | No bracket (J) · 5 µm element (W) · PT thread |
| Port | 1/8" (06), 1/4" (08) |
|---|---|
| Thread | PT (standard) |
| Filter element | 40 µm (standard), 5 µm (W) |
| Bowl | Short PC bowl |
| Drain | Differential + manual |
| Fluid | Air |
| Low-pressure (L) version | 0.15 – 0.4 MPa (20 – 58 psi) |
Source: AirTAC Products Catalog 2026A (p.235, PDF01-P0237), GT200 ordering code and specifications.
How to choose
This code differs from GTFR20006SJNW only in the gauge: the N sibling is gaugeless, so pick it when a separate gauge is already in the circuit. If reverse-flow protection is also needed, the K sibling GTFR20006SJNWK adds a check valve while staying gaugeless. For 1/4" lines move to the 08 body, and the ordering table lists G and NPT threads plus the low-pressure L type rated 0.15 to 0.4 MPa (20 to 58 psi).
Applications
Set-and-verify stations
Adjusting the regulator to a visible setpoint during machine setup or changeover, with the fitted gauge showing the regulated pressure directly.
Maintenance points
Serving as a condition-and-check point on a 1/8" branch line, where the 5 um element and readable gauge support routine servicing.
Assembly station circuits
Supplying filtered air to small actuators at assembly benches, using the short PC bowl where depth is limited and the bracketless J format is preferred.
FAQ
What does GTFR20006SJW include at a glance?
A 1/8" (06) PT-threaded filter regulator, standard pressure type (S), pressure gauge fitted, 5 um filter element (W), no mounting bracket (J), short PC bowl with differential plus manual drain, fluid: air.
How does this code compare to its siblings?
GTFR20006SJNW is identical but has no gauge, and GTFR20006SJNWK swaps the gauge position for a check valve. All three use the 1/8" (06) PT port and the 5 um element; only the gauge and check valve options in the ordering code change.
