Airtac GTFR Filter Regulator GTFR20006SNW
Genuine AirTAC filter regulator, order code GTFR20006SNW from the GTFR200 range. The options this code selects are decoded below; series data follow the official AirTAC catalog.
- Port1/8" (06)
- Type · gaugeStandard (S) · No gauge (N)
- ConfigurationWith bracket · 5 µm element (W) · PT thread
- Port1/8" (06), 1/4" (08)
- ThreadPT (standard)
- Filter element40 µm (standard), 5 µm (W)
- No minimum order. A single piece can be ordered.
- Ready in 3–5 business days. That is the time we take to process the order and hand it to the carrier. Transit time after that depends on the destination.

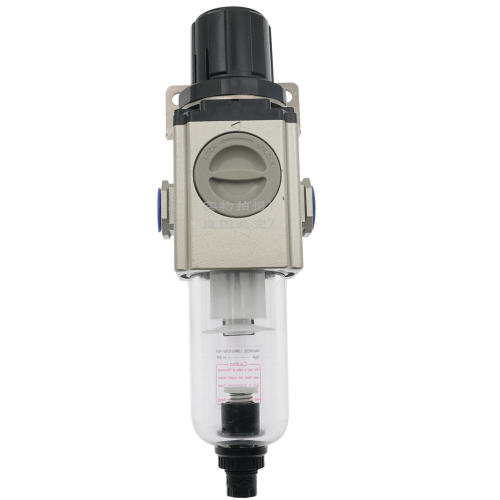

About the Airtac GTFR Filter Regulator GTFR20006SNW
On AirTAC's GT200 short-bowl platform, GTFR20006SNW specifies the 1/8 inch (06) filter regulator in the standard type with the N suffix, so no pressure gauge is fitted. The W letter is what sets this unit apart: it replaces the standard 40 um element with a 5 um element, so air leaving the short PC bowl is noticeably cleaner before it reaches downstream devices. PT threading is the series standard on the ports.
Because the code has no K suffix, this version has no check valve, meaning downstream air can flow back through the unit when supply pressure falls; choose GTFR20006SNWK when retention is required. The drain works on a differential principle with a manual option, and the mounting bracket included with this code (no J in the order string) allows panel fixing rather than pipe-supported installation.
Airtac GTFR Filter Regulator GTFR20006SNW Technical Specifications
| Order code | GTFR20006SNW |
|---|---|
| Product | Filter Regulator |
| Port | 1/8" (06) |
| Type · gauge | Standard (S) · No gauge (N) |
| Configuration | With bracket · 5 µm element (W) · PT thread |
| Port | 1/8" (06), 1/4" (08) |
|---|---|
| Thread | PT (standard) |
| Filter element | 40 µm (standard), 5 µm (W) |
| Bowl | Short PC bowl |
| Drain | Differential + manual |
| Fluid | Air |
| Low-pressure (L) version | 0.15 – 0.4 MPa (20 – 58 psi) |
Source: AirTAC Products Catalog 2026A (p.235, PDF01-P0237), GT200 ordering code and specifications.
How to choose
Choose GTFR20006SNW when air cleanliness is the priority but backflow retention is not; if a downstream actuator must hold its pressure, take GTFR20006SNWK instead, and if the standard 40 um element is acceptable, GTFR20006SN is the plainer sibling. The 08 ending gives GTFR20008SNW for 1/4 inch lines, and the low-pressure GTFR20006SLNW covers systems regulating 0.15 - 0.4 MPa (20 - 58 psi).
Applications
Instrument and sensor air
Supplying pickups, sensors and small actuators that benefit from the 5 um element's cleaner air rather than standard 40 um filtration.
Packaging machine feed
Regulating a 1/8 inch supply to sealing or labeling heads, with no check valve needed because exhaust backflow is harmless in this duty.
Pneumatic tool station
A bench or tool point where the differential plus manual drain clears condensate, and an external gauge is fitted since none is built in.
FAQ
What are the key figures of the GTFR20006SNW?
Port 1/8 inch (06) with PT thread, standard pressure type, no gauge fitted (N), 5 um element (W), no check valve, differential plus manual drain, short PC bowl, mounting bracket included. A pressure range for the standard type is not listed here; the low-pressure L version of the series regulates 0.15 - 0.4 MPa (20 - 58 psi), and remaining ratings should be confirmed from the datasheet.
Why no gauge and no check valve on the GTFR20006SNW?
The N letter in the order code deletes the factory pressure gauge, and the absence of K leaves the check valve out. Fit an external gauge where pressure must be read, and choose GTFR20006SNWK when downstream pressure retention matters.
