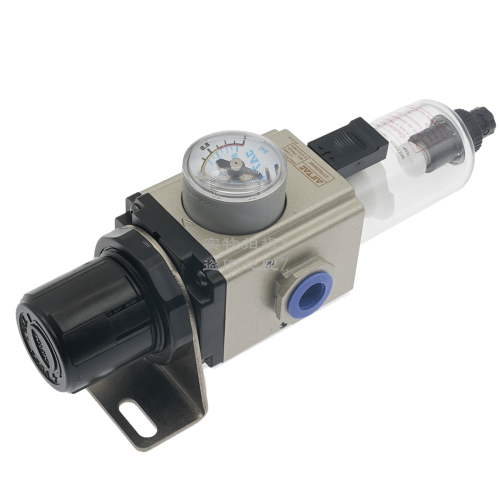

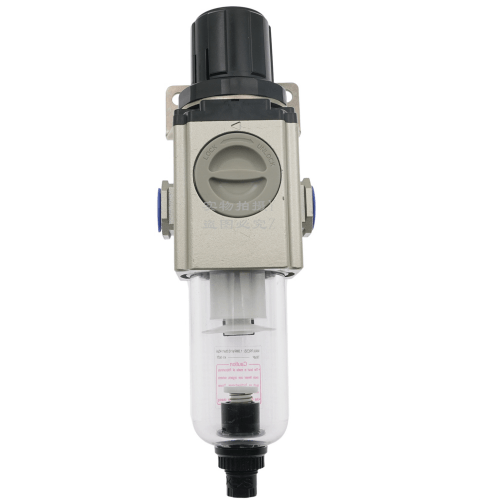

Airtac GTFR Filter Regulator GTFR20006SW
Genuine AirTAC filter regulator, order code GTFR20006SW from the GTFR200 range. The options this code selects are decoded below; series data follow the official AirTAC catalog.
- Port1/8" (06)
- Type · gaugeStandard (S) · With gauge (MPa/psi)
- ConfigurationWith bracket · 5 µm element (W) · PT thread
- Port1/8" (06), 1/4" (08)
- ThreadPT (standard)
- Filter element40 µm (standard), 5 µm (W)
- No minimum order. A single piece can be ordered.
- Ready in 3–5 business days. That is the time we take to process the order and hand it to the carrier. Transit time after that depends on the destination.
About the Airtac GTFR Filter Regulator GTFR20006SW
The AirTAC GTFR20006SW is the fine-filtration member of the GTFR200 filter regulator family in the 1/8 inch (06) port size. The W in the order code selects the 5 um element instead of the standard 40 um, so it polishes the air feeding delicate components such as small valves and actuators, while the standard type (S) covers normal supply pressure with a pressure gauge fitted in MPa and psi.
Like every GT200-series unit it uses the short PC bowl, the compact body that keeps GA200 features in a smaller footprint, and it drains condensate by differential plus manual operation. A mounting bracket is included because the code has no J, and the PT threads are standard since no G or T is specified.
Airtac GTFR Filter Regulator GTFR20006SW Technical Specifications
| Order code | GTFR20006SW |
|---|---|
| Product | Filter Regulator |
| Port | 1/8" (06) |
| Type · gauge | Standard (S) · With gauge (MPa/psi) |
| Configuration | With bracket · 5 µm element (W) · PT thread |
| Port | 1/8" (06), 1/4" (08) |
|---|---|
| Thread | PT (standard) |
| Filter element | 40 µm (standard), 5 µm (W) |
| Bowl | Short PC bowl |
| Drain | Differential + manual |
| Fluid | Air |
| Low-pressure (L) version | 0.15 – 0.4 MPa (20 – 58 psi) |
Source: AirTAC Products Catalog 2026A (p.235, PDF01-P0237), GT200 ordering code and specifications.
How to choose
Start from your line size: 1/8 inch means the 06 port, and this code is the one to pick when that line also needs cleaner-than-standard air. Against GTFR20006S (40 um element) it trades coarser, longer-life filtration for 5 um protection of downstream parts. Against GTFR20006SWK it is the same unit without the check valve option, so choose SWK only if you need check-valve function. The 08 codes are for 1/4 inch lines, and the L codes cover the low-pressure range instead of standard.
Applications
Small pneumatic tool feeding
On 1/8 inch drop lines to compact air tools, the 5 um element removes finer particles than the standard 40 um, and the fitted gauge lets operators set and read regulated pressure directly.
Protecting sensitive components
Before small pilot valves or instrument-grade devices, the W element supplies cleaner air while the short PC bowl with differential plus manual drain handles collected condensate in tight cabinets.
Compact machine panels
The GT200 short-bowl body fits where the full-depth GA200 will not, and the included mounting bracket lets this 1/8 inch unit be fixed inside a control panel without extra hardware.
FAQ
What are the key figures of the GTFR20006SW?
Port 1/8 inch (06), PT thread as standard, standard type (S) with a pressure gauge in MPa and psi, 5 um filter element (W option), short PC bowl with differential plus manual drain, mounting bracket included, and no check valve since the code has no K.
What does the W in GTFR20006SW change, and can I order it without the bracket or gauge?
W selects the 5 um element in place of the standard 40 um, which is the choice for cleaner air to sensitive downstream parts. In the same family, J removes the mounting bracket, N deletes the pressure gauge, K adds a check valve, and G or T give G or NPT threads instead of PT.
