Airtac GTL Lubricator GTL20008
Genuine AirTAC lubricator, order code GTL20008 from the GTL200 range. The options this code selects are decoded below; series data follow the official AirTAC catalog.
- Port1/4" (08)
- BracketWith bracket
- ThreadPT thread
- Port1/8" (06), 1/4" (08)
- ThreadPT (standard)
- BowlShort PC bowl
- No minimum order. A single piece can be ordered.
- Ready in 3–5 business days. That is the time we take to process the order and hand it to the carrier. Transit time after that depends on the destination.

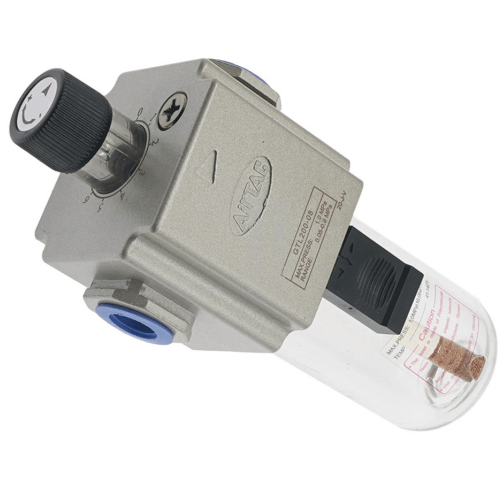

About the Airtac GTL Lubricator GTL20008
The GTL20008 selects the 1/4 inch port (port code 08), the larger of the two GTL200 options, with PT as the standard thread and a mounting bracket included since the code has no J suffix. It meters oil mist into 1/4 inch air lines serving cylinders, valves and air tools.
Like every GT200-series lubricator, it uses a short PC bowl so the unit fits where the full-height GA200 layout cannot, while keeping the series features. The bowl drains through a differential plus manual arrangement, letting the operator empty condensate without dismantling the lubricator.
Airtac GTL Lubricator GTL20008 Technical Specifications
| Order code | GTL20008 |
|---|---|
| Product | Lubricator |
| Port | 1/4" (08) |
| Bracket | With bracket |
| Thread | PT thread |
| Port | 1/8" (06), 1/4" (08) |
|---|---|
| Thread | PT (standard) |
| Bowl | Short PC bowl |
| Drain | Differential + manual |
| Fluid | Air |
Source: AirTAC Products Catalog 2026A (p.235, PDF01-P0237), GT200 ordering code and specifications.
How to choose
The port is the deciding choice within this series: GTL20008 is the 1/4 inch (08) option, so use it when your main line and fittings are 1/4 inch, and fall back to GTL20006 for 1/8 inch circuits. Thread is standard PT here; if your installation uses G or NPT threads, order the G or T thread variants from the same ordering table. For mounting, GTL20008 ships with a bracket, whereas the J-coded versions of these units are supplied without bracket.
Applications
Machine tool actuator feed
Lubricate medium-size pneumatic actuators on a 1/4 inch PT supply line, using the larger port of the GTL200 range where a 1/8 inch unit would restrict flow.
Production line FRL station
Complete a production line FRL set as the lubrication stage on a 1/4 inch circuit, with the included bracket securing the short-bowl GT200 body beside the filter and regulator.
Material handling air circuits
Feed oil mist to air tools and cylinders on warehouse and dock equipment built around 1/4 inch PT lines, with manual bowl draining during scheduled checks.
FAQ
What are the key figures of the AirTAC GTL20008?
Port 1/4 inch (port code 08), PT thread as the standard connection, short PC bowl, differential plus manual drain, fluid air, mounting bracket included, from the short-bowl GT200 series.
How does GTL20008 differ from GTL20006 and GTL20006J?
GTL20008 has the larger 1/4 inch (08) port instead of the 1/8 inch (06) port of the other two. Like GTL20006 it includes the bracket; only the J-suffixed codes are supplied without bracket, and G or T thread variants exist for G and NPT connections.
