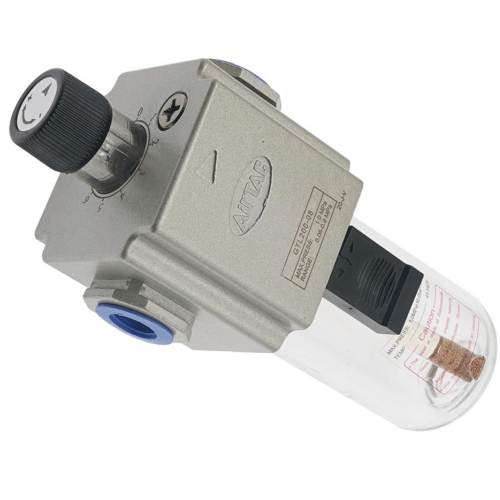

Airtac GTL Lubricator GTL20008J
2. Features short-profile PC bowls for both water and oil chambers, optimizing installation space for confined environments;
3. Implements differential-pressure manual drainage mechanism across all filtration units.
Category: Lubricator | Brand: AirTAC | Series: GTL
AirTAC GTL Series Lubricator GTL20008J Technical Details
- Model: GTL20008J (Transparent Bowl Type)
- Type: Micro-fog adjustable lubricator
- Port size: PT1/4 (BSPP thread)
- Maximum flow capacity: 500 L/min
- Oil capacity: 180 cm³
- Operating pressure range: 0.05–1.0 MPa
- Oil drip adjustment: 5–60 drops/min
- Weight: 450g ±5% (with oil)
- Dimensions: 150mm(H) × 80mm(W) × 80mm(D)
- Body material: Polycarbonate (PC) with anti-UV treatment
- Seal material: Oil-resistant NBR
- Temperature range: 0℃ to 60℃ (operating fluid)
- Mounting orientation: Vertical ±15° (bowl downward)
- Air filtration requirement: 40μm upstream filter recommended
The GTL20008J features a bubble-through oil delivery system with magnified drip window for precise lubrication control. Its corrosion-resistant stainless steel spring and anti-splash mechanism ensure stable performance in high-vibration environments. The bowl includes a safety shield meeting ISO 6150 standards.
- Pneumatic tool lubrication in automotive assembly lines
- Actuator maintenance for food packaging machinery
- CNC machine pneumatic circuits (spindle clamps/tool changers)
- Textile machinery air preparation systems
- Plastic injection molding machine air lines
Maintenance protocol:
Refill when oil level drops below 1/3 capacity. Use ISO VG32 or equivalent
turbine oil (Kinematic viscosity 32 cSt at 40℃). Replace bowl every 8,000
operating hours or if surface cracks appear.
| Property | Property Value |
|---|---|
| sku | GTL20008J |
| Port Size | PT1/4 |
