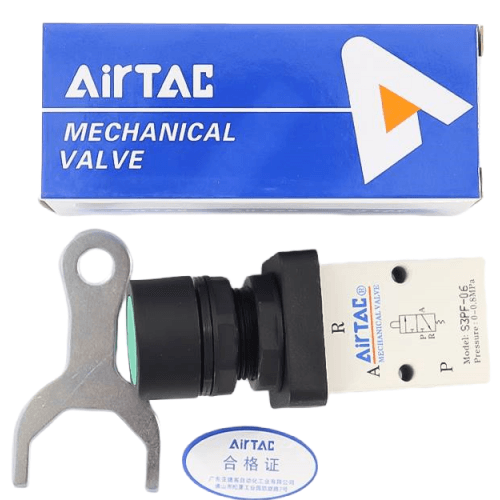

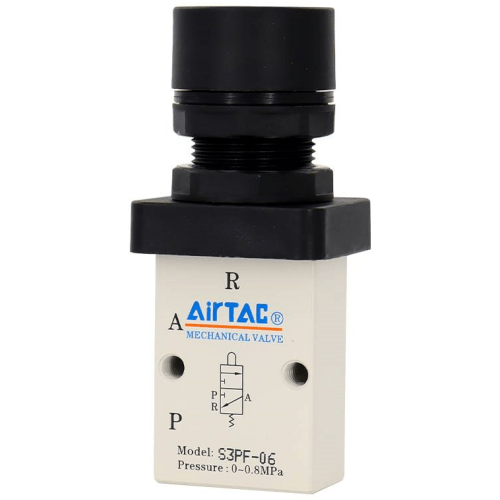

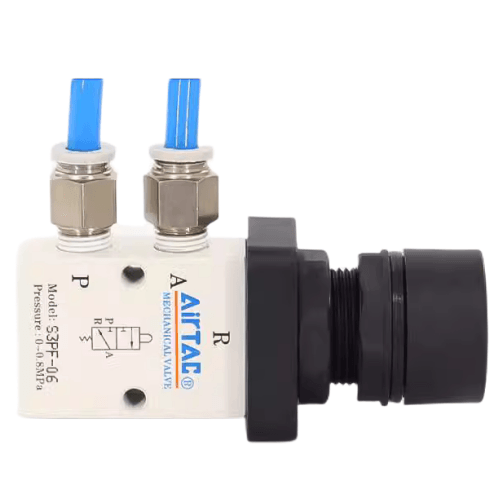

Airtac S3PF Flat Button Type Mechanical Valve S3PF05-P13A
2. The S3PF, S3PM, S3PP, S3PL, S3Y, S3HS, S3C, and S3D series feature manual operation with multi-configuration control heads for diverse operating conditions;
3. Poppet valve design ensures superior sealing performance, smooth shifting action, and maintenance-free operation without lubrication;
4. Supports multi-position mounting configurations for flexible installation;
5. Metal-constructed control heads on S3C, S3D, S3Y, S3R, and S3L series deliver extended service life with enhanced reliability and stability.
Category: Mechanical Valves | Brand: AIRTAC | Series: S3PF Flat-Head Button Type
AirTAC S3PF05-P13A Flat-Head Push Button Mechanical Valve Specifications
- Model: S3PF05-P13A
- Type: 3/2-way normally closed (manual reset)
- Port size: PT1/8 (G1/8 thread standard)
- Operating pressure: 0.15–0.8 MPa (21.7–116 PSI)
- Flow capacity: 450 NL/min (ANR)
- Actuation force: 3.5±0.5 kgf
- Body material: Stainless steel (SUS303) with aluminum alloy handle
- Seal material: HNBR rubber (-20℃ to 150℃ compatible)
- Temperature range: -20℃ to 80℃ (non-freezing)
- Weight: 118±5g
- Dimensions: 39.5mm(L) × 25.4mm(W) × 31.8mm(H)
- Mounting: Direct piping (no manifold required)
- Protection rating: IP67 (dust/water resistant)
- Cycle life: ≥500,000 operations
Rugged manual override valve with tactile feedback, featuring a low-profile design for panel mounting in confined spaces. The chrome-plated button resists corrosion from hand contact, while the precision-machined stem prevents air leakage during prolonged use. Requires 5-50μm filtered compressed air with oil mist ≤1mg/m³.
- Emergency stop systems in automated production lines
- Manual override for pneumatic clamping fixtures
- Safety exhaust control in semiconductor equipment
- Pneumatic tool manual control stations
- Educational training equipment for mechatronics
Installation note:
Apply 2-3 drops of ISO VG32 pneumatic oil monthly for smooth operation.
Maximum allowable side load on button: 10N. Avoid mounting near high-frequency vibration sources.
| Property | Property Value |
|---|---|
| sku | S3PF05-P13A |
| Position | Please provide the specific AirTAC product attribute values you need translated, and I will return the accurate English terminology. |
| Port Size | Please provide the specific AirTAC product attribute values you need translated, and I will return the accurate English terminology. |
