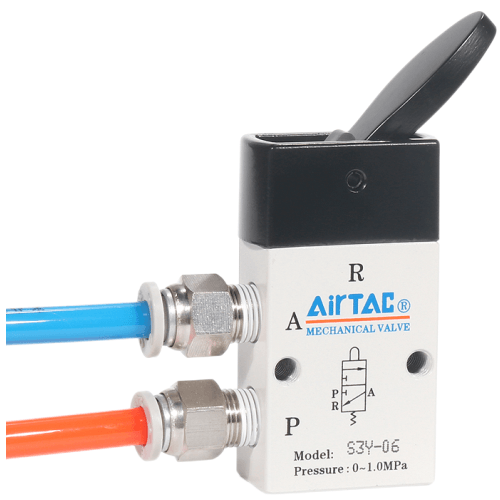

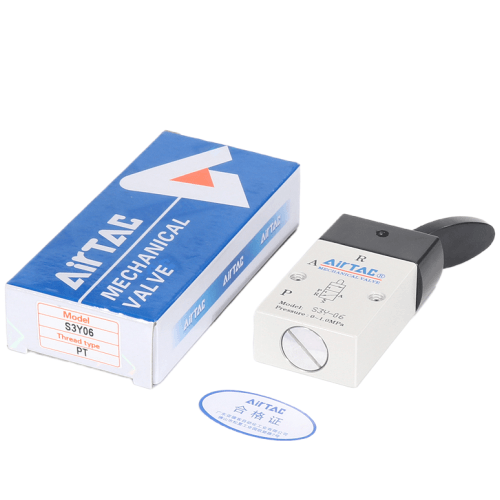

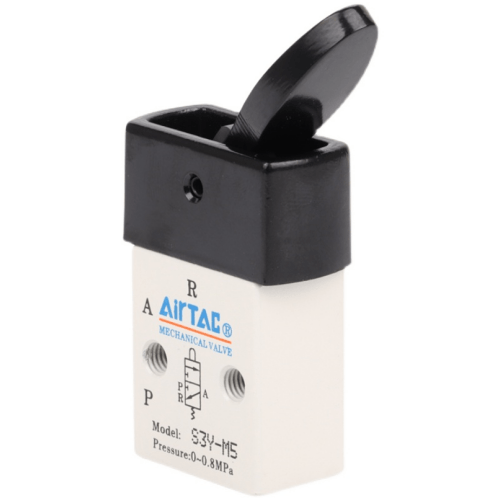

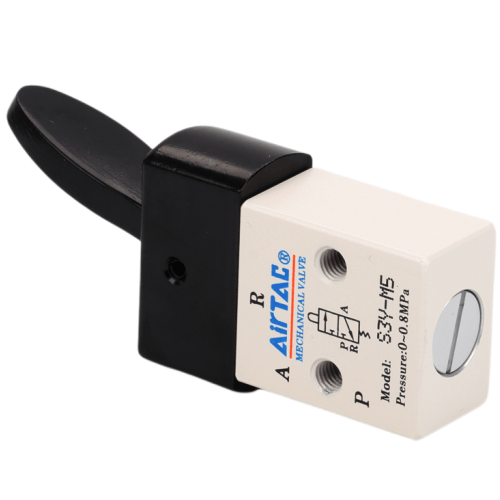

Airtac S3Y Rocker Arm Type Mechanical Valve S3Y-08
2. The S3PF, S3PM, S3PP, S3PL, S3Y, S3HS, S3C, and S3D series feature manual override operation with multiple ergonomic actuator head configurations for versatile application adaptability;
3. Poppet-type valve design ensures excellent sealing performance, smooth actuation, and maintenance-free operation without lubrication requirements;
4. Multi-position mounting capability enables flexible installation and simplified system integration;
5. Metal actuator heads on S3C, S3D, S3Y, S3R, and S3L series provide enhanced durability, reliability, and stable performance in demanding environments.
Category: Mechanical Valves , Brand: Airtac , Series: S3Y Rocker Arm Type
AirTAC S3Y-08 Paddle-Type Mechanical Valve Specifications
- Model: S3Y-08
- Type: 3/2-way manual paddle valve (spring return)
- Port size: PT1/4 (G1/8 optional)
- Operating pressure: 0.1–0.9 MPa
- Flow capacity: 850 L/min (ANR)
- Actuation angle: 90° ±5° rotation
- Body material: Anodized aluminum alloy
- Seal material: HNBR (high-temp nitrile)
- Temperature range: -20℃ to 80℃
- Operating force: ≤3.5N at 0.6MPa
- Weight: 280g ±5%
- Dimensions: 54mm(L) × 38mm(W) × 65mm(H)
- Mounting style: Panel mount with M5 fasteners
- Port thread depth: 12mm engagement
Robust mechanical valve featuring tactile paddle operation with positive "click" feedback. Designed for emergency stop applications and manual override systems. The hardened stainless steel shaft and wear-resistant bushings ensure >500,000 cycle durability. Includes dust-resistant boot cover (included).
- Production line emergency air cutoff
- Plastic injection molding machine safety systems
- Pneumatic press manual override control
- Training simulators for industrial automation
- Food processing equipment maintenance bypass
Installation note:
Mount with paddle axis parallel to operator's natural hand motion.
Lubricate pivot point with ISO VG32 hydraulic oil during annual maintenance.
Maximum allowable side-load on paddle: 15N.
| Property | Property Value |
|---|---|
| sku | S3Y-08 |
| Position | 3-Port 2-Position |
| Port Size | PT1/4 |
