Airtac SC40 Standard Cylinder SC40X1200

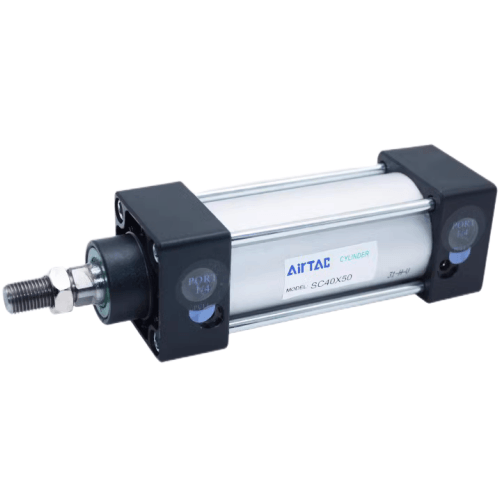

The AirTAC Airtac SC40 Standard Cylinder SC40X1200 is a genuine double-acting standard air cylinder with a Ø40mm bore and 1200mm stroke, PT1/4 air ports and adjustable end cushioning. It is used for push, pull, lift and clamp motion in industrial automation.
- BoreØ40 mm
- Stroke1200 mm
- Port sizePT1/4
- Acting typeDouble acting
- Rod threadM12×1.25
- CushionAdjustable, 21 mm
About the Airtac SC40 Standard Cylinder SC40X1200
The AirTAC SC40X1200 is a double-acting single-rod pneumatic cylinder delivering 628 N of push force at 0.5 MPa (1130 N at 0.9 MPa). Its 40 mm bore and 1200 mm stroke suit long linear movements in material handling and packaging machinery.
Built on a tie-rod construction with a 16 mm diameter chrome-plated rod and M12x1.25 rod thread, this cylinder includes an adjustable air cushion (21 mm cushion length) to decelerate the piston smoothly at stroke ends. The body length A is 142 mm, giving a total extended length of approximately 1342 mm.
Airtac SC40 Standard Cylinder SC40X1200 Technical Specifications
| Model | Airtac SC40 Standard Cylinder SC40X1200 |
|---|---|
| Series | SC standard tie-rod cylinder |
| Bore size | Ø40 mm |
| Stroke | 1200 mm |
| Acting type | Double acting |
| Port size | PT1/4 |
| Rod thread | M12×1.25 |
| Fluid | Air (filtered by 40µm element) |
|---|---|
| Operating pressure | 0.15 – 1.0 MPa |
| Proof pressure | 1.5 MPa |
| Temperature | -20 to +70 °C |
| Speed range | 30 – 800 mm/s |
| Cushion | Adjustable, 21 mm |
| Max stroke | Up to 1200 mm |
Specifications follow the official AirTAC SC series datasheet. Operating pressure 0.15–1.0 MPa, proof pressure 1.5 MPa, temperature −20 to +70 °C. Confirm against the product label before installation. Thread options: PT (standard) / G.
Theoretical Output Force (Ø40mm)
| Pressure | Push force | Pull force |
|---|---|---|
| 0.5 MPa | 628 N | 528 N |
| 0.7 MPa | 880 N | — |
| Max (approx.) | 128 kgf | |
Actual usable force is lower than theoretical due to friction and back-pressure. Size with a safety margin.
Model Code: Airtac SC40 Standard Cylinder SC40X1200
| SC | Standard tie-rod cylinder series. |
|---|---|
| 40 | Bore size in mm. |
| ×1200 | Stroke length in mm. |
| -S | Optional built-in magnet for sensor position sensing. |
Related variants: SCD (double rod), SCJ (adjustable stroke), SCT (multi-position). Seals: TPU standard / H = Viton / N = NBR. Thread: blank = PT, G = G thread.
Where the Airtac SC40 Standard Cylinder SC40X1200 Is Used
Long-Stroke Material Transfer
Pushes or pulls trays and pallets across wide conveyor gaps, using the full 1200 mm stroke for extended reach in automated lines.
Packaging & Palletising
Operates pusher arms or layer-forming mechanisms in packaging stations where consistent force and long travel are required.
Woodworking & Panel Saws
Positions fence stops or clamps on long-bed machinery, benefiting from the adjustable cushion for smooth, impact-free stopping.
Is the Airtac SC40 Standard Cylinder SC40X1200 the Right Cylinder?
Choose the SC40X1200 when 628 N push force at 0.5 MPa matches your load. If you need more force, step up to the SC50 bore (982 N at 0.5 MPa); for a lighter, more compact solution, the SC32 bore provides 402 N. At this 1200 mm stroke, the rod is fully supported by the front bearing, but any side load can cause rod deflection or bearing wear—use an external linear guide or a guided cylinder for non-axial loads.
For a direct replacement, match these five points: bore (40 mm), stroke (1200 mm), port thread (PT1/4), mounting accessory (basic, no bracket), and magnet option (none). This model uses the default TPU seals and PT ports.
Quick checklist
- ✓ Required force at your working pressure
- ✓ Stroke and mounting space
- ✓ Port/thread type (PT/NPT/G)
- ✓ Magnet (-S) for sensors?
- ✓ Side load — consider a guided cylinder
Installation & Maintenance Notes
- check Use clean air filtered to 40µm or finer.
- check Keep within 0.15 – 1.0 MPa operating pressure.
- check Avoid side load on the piston rod.
- check Adjust end cushion screws for smooth stops.
- check Use correct mounting accessory (FA/FB/CA/CB/LB/TC).
- check Installation by qualified personnel per AirTAC docs.
Airtac SC40 Standard Cylinder SC40X1200 FAQ
At 0.5 MPa, the push force is 628 N and the pull force is 528 N. At the maximum operating pressure of 0.9 MPa, push force reaches 1130 N. The theoretical maximum at 1.0 MPa is 128 kgf.
No. The AirTAC SC series is a tie-rod cylinder with a shorter body length than ISO 15552 profile cylinders, so mounting dimensions are not interchangeable. It directly replaces another AirTAC SC40 cylinder with the same stroke, port, and mounting configuration.
