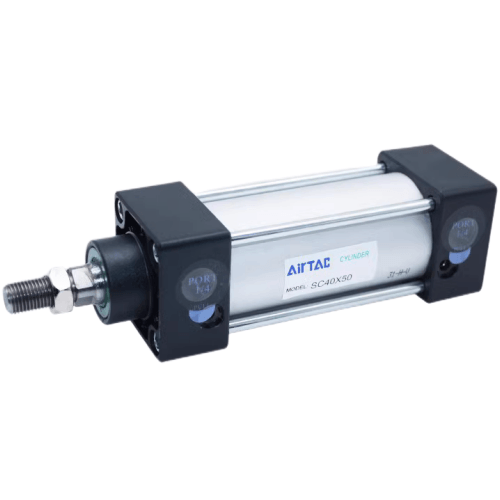

Airtac SC40 Standard Cylinder SC40X30
The AirTAC Airtac SC40 Standard Cylinder SC40X30 is a genuine double-acting standard air cylinder with a Ø40mm bore and 30mm stroke, PT1/4 air ports and adjustable end cushioning. It is used for push, pull, lift and clamp motion in industrial automation.
- BoreØ40 mm
- Stroke30 mm
- Port sizePT1/4
- Acting typeDouble acting
- Rod threadM12×1.25
- CushionAdjustable, 21 mm
About the Airtac SC40 Standard Cylinder SC40X30
The SC40X30 is a compact-stroke member of the AirTAC SC tie-rod cylinder family, delivering 628 N of push force at 0.5 MPa. Its 30 mm stroke suits short linear positioning tasks where a 16 mm diameter piston rod provides good rigidity against buckling.
With a body length A of just 142 mm, this double-acting cylinder fits into tight spaces while still offering the adjustable pneumatic cushion standard on all SC models. The PT1/4 port and M12x1.25 rod thread make air connections and tooling attachment straightforward.
Airtac SC40 Standard Cylinder SC40X30 Technical Specifications
| Model | Airtac SC40 Standard Cylinder SC40X30 |
|---|---|
| Series | SC standard tie-rod cylinder |
| Bore size | Ø40 mm |
| Stroke | 30 mm |
| Acting type | Double acting |
| Port size | PT1/4 |
| Rod thread | M12×1.25 |
| Fluid | Air (filtered by 40µm element) |
|---|---|
| Operating pressure | 0.15 – 1.0 MPa |
| Proof pressure | 1.5 MPa |
| Temperature | -20 to +70 °C |
| Speed range | 30 – 800 mm/s |
| Cushion | Adjustable, 21 mm |
| Max stroke | Up to 1200 mm |
Specifications follow the official AirTAC SC series datasheet. Operating pressure 0.15–1.0 MPa, proof pressure 1.5 MPa, temperature −20 to +70 °C. Confirm against the product label before installation. Thread options: PT (standard) / G.
Theoretical Output Force (Ø40mm)
| Pressure | Push force | Pull force |
|---|---|---|
| 0.5 MPa | 628 N | 528 N |
| 0.7 MPa | 880 N | — |
| Max (approx.) | 128 kgf | |
Actual usable force is lower than theoretical due to friction and back-pressure. Size with a safety margin.
Model Code: Airtac SC40 Standard Cylinder SC40X30
| SC | Standard tie-rod cylinder series. |
|---|---|
| 40 | Bore size in mm. |
| ×30 | Stroke length in mm. |
| -S | Optional built-in magnet for sensor position sensing. |
Related variants: SCD (double rod), SCJ (adjustable stroke), SCT (multi-position). Seals: TPU standard / H = Viton / N = NBR. Thread: blank = PT, G = G thread.
Where the Airtac SC40 Standard Cylinder SC40X30 Is Used
Short-Stroke Clamping
Ideal for compact clamping fixtures in CNC machining where a 30 mm stroke provides sufficient jaw travel without excess overhang.
Part Stops & Diverters
Used as a pneumatic stop gate on light-duty conveyors, extending quickly to halt or divert small packages with its 628 N push force.
Laboratory Automation
Fits into lab automation equipment for precise, short-throw reagent dispensing or test-tube handling, benefiting from the clean, oil-free air operation.
Is the Airtac SC40 Standard Cylinder SC40X30 the Right Cylinder?
For applications needing slightly more force in the same bore class, consider stepping up to the SC50 (982 N at 0.5 MPa). If a 30 mm stroke is too short, the SC40 is available in standard strokes up to 1200 mm. For a direct replacement, match bore (40 mm), stroke (30 mm), PT1/4 port thread, and basic mounting. If your existing cylinder uses a magnet for sensor feedback, select the -S suffix variant.
Quick checklist
- ✓ Required force at your working pressure
- ✓ Stroke and mounting space
- ✓ Port/thread type (PT/NPT/G)
- ✓ Magnet (-S) for sensors?
- ✓ Side load — consider a guided cylinder
Installation & Maintenance Notes
- check Use clean air filtered to 40µm or finer.
- check Keep within 0.15 – 1.0 MPa operating pressure.
- check Avoid side load on the piston rod.
- check Adjust end cushion screws for smooth stops.
- check Use correct mounting accessory (FA/FB/CA/CB/LB/TC).
- check Installation by qualified personnel per AirTAC docs.
Airtac SC40 Standard Cylinder SC40X30 FAQ
At 0.7 MPa (7 bar), the SC40X30 delivers 879 N of push force on extension. The pull force on retraction is 528 N at 0.5 MPa, due to the area reduction from the 16 mm piston rod.
No. The AirTAC SC series is a tie-rod cylinder and is physically shorter than an ISO 15552 profile cylinder, so mounting dimensions and body length are not interchangeable. It should only replace another AirTAC SC tie-rod cylinder with matching bore, stroke, and port thread.
