Genuine AirTAC piston pressure regulator, order code SDR100061 from the SDR range. The options this code selects are decoded below; series data follow the official AirTAC catalog.

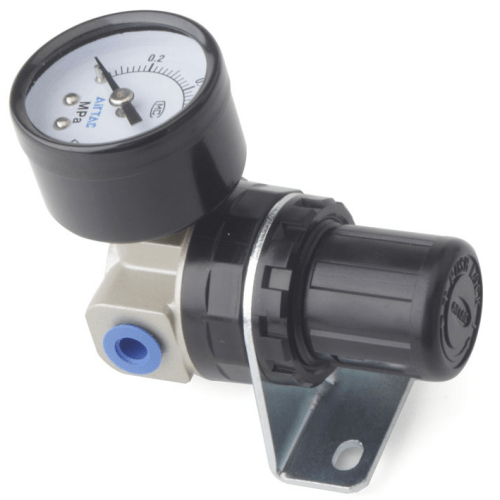

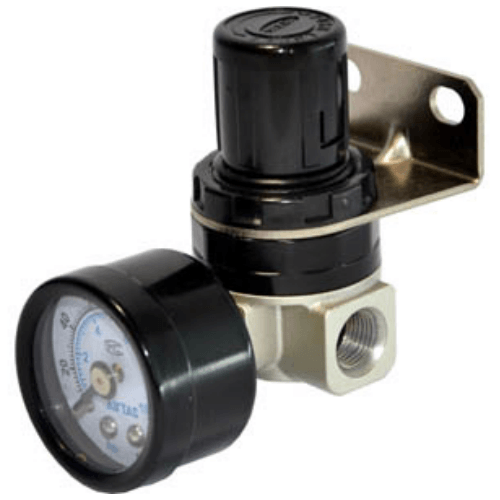

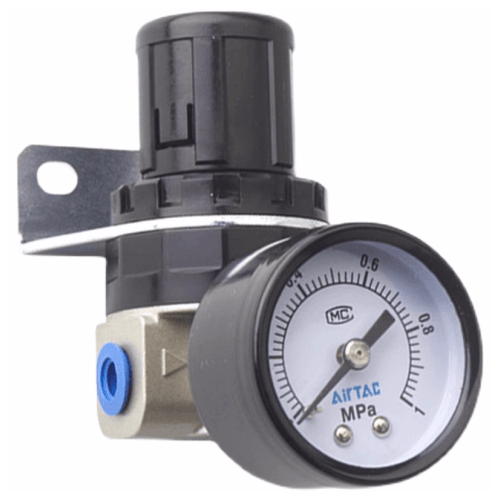

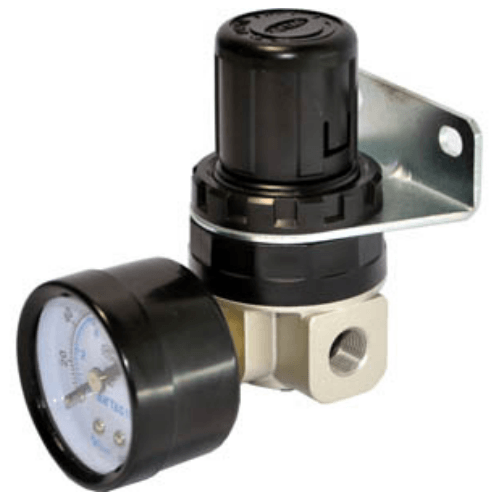

The SDR100061 is the fully equipped PT1/8 version of the AirTAC SDR100 piston back-pressure regulator. Ordering code 06 selects the 1/8 port in PT thread, the standard type covers 0.05-0.9 MPa, and code 1 supplies a gauge scaled in MPa so set pressure is visible at the valve. Maximum operating pressure is 1.0 MPa (145 psi), proof pressure 1.5 MPa (215 psi), and the fluid temperature span is -20 to +70 C.
As a piston back-pressure type, this regulator is a simple, small and cost-effective unit that is easy to install, and output pressure stays stable in circuits that need good value rather than high regulating accuracy. It ships as a single unit with its mounting bracket fitted, so it can be screwed straight onto a panel or plate without extra hardware.
| Order code | SDR100061 |
|---|---|
| Product | Piston Pressure Regulator |
| Model and port | SDR100 · PT1/8 |
| Type and bracket | Standard, with bracket |
| Pressure gauge | MPa gauge (1) |
| Structure | Piston back-pressure type |
|---|---|
| Fluid | Air |
| SDR100 ports | M5 / 1/8 |
| SDR200 ports | 1/8 / 1/4 |
| Regulating range | 0.05-0.9 MPa (standard), 0.03-0.4 MPa (L) |
| Max. pressure | 1.0 MPa (145 psi) |
| Proof pressure | 1.5 MPa (215 psi) |
| Temperature | -20 to +70 °C |
Source: AirTAC Products Catalog 2026A (PDF01-P0274), SDR series specifications and ordering code.
Pick SDR100061 when you want the complete SDR100 in 1/8 PT: standard 0.05-0.9 MPa regulation, MPa gauge and mounting bracket all present. If your machine mounts the body directly to a manifold and needs no bracket, choose SDR10006J1 instead; if it also reads pressure from a separate gauge elsewhere in the circuit, the gaugeless SDR10006JN is the leaner code. On the SDR100 size the port alternatives are M5 (SDR100M5...) for tighter spaces, while the 1/4 port belongs to the larger SDR200 series. Stay with this standard type unless the set pressure never exceeds 0.4 MPa, in which case the low-pressure code L with its 0.03-0.4 MPa range gives finer adjustment; G or T thread codes change the gauge scale to bar or psi.
Drops into a PT1/8 supply line on a small machine or fixture, holding a stable secondary pressure anywhere in the 0.05-0.9 MPa span with the MPa-scale gauge on show.
The supplied bracket fixes the regulator inside a control cabinet or on a machine plate, giving operators a local MPa readout to set and verify circuit pressure.
Suits cost-sensitive conveyor and pick-and-place loops where moderate accuracy is acceptable and the 1.0 MPa maximum and -20 to +70 C envelope are comfortably respected.
SDR100 piston back-pressure regulator, PT1/8 port (code 06), standard regulating range 0.05-0.9 MPa, maximum pressure 1.0 MPa (145 psi), proof pressure 1.5 MPa (215 psi), temperature -20 to +70 C, MPa-scale gauge (code 1) and mounting bracket included, fluid air.
SDR is the piston pressure regulator series, 100 is the series size, 06 is the 1/8 PT port, the blank type field means the standard 0.05-0.9 MPa version with bracket, and 1 selects the gauge scaled in MPa. Code L would switch to the 0.03-0.4 MPa low-pressure type, J would remove the bracket, and N would delete the gauge.
