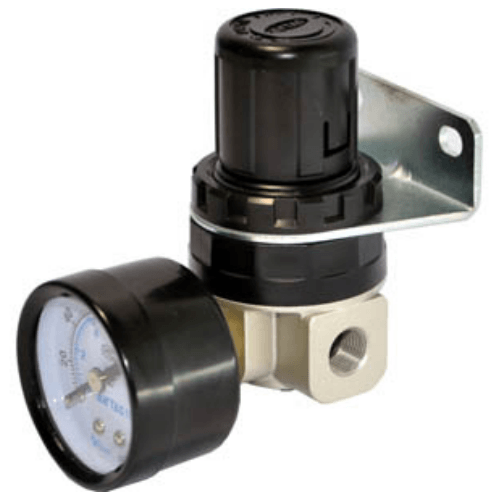

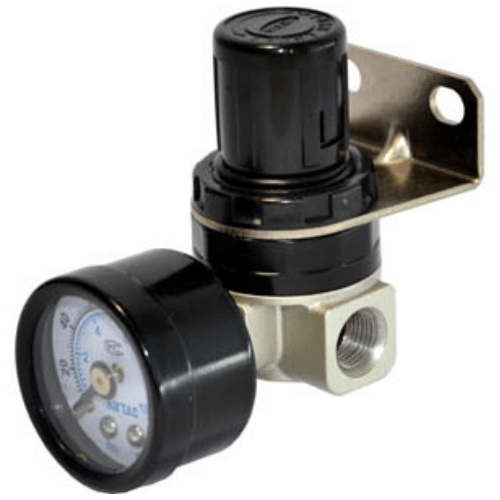

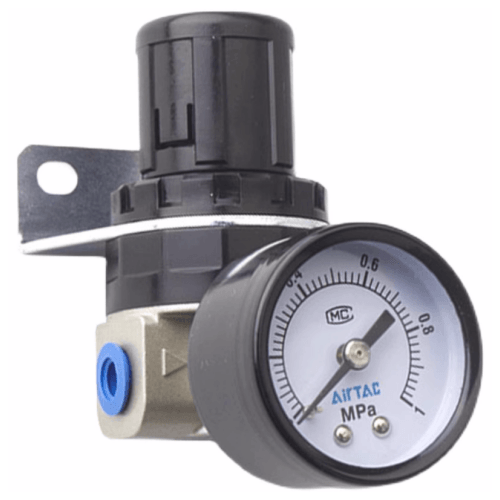

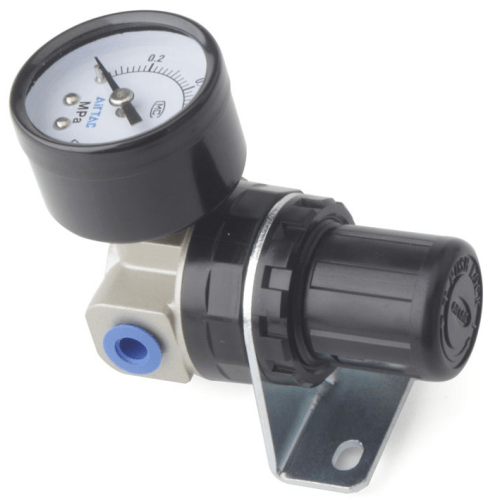

Genuine AirTAC piston pressure regulator, order code SDR10006N from the SDR range. The options this code selects are decoded below; series data follow the official AirTAC catalog.
The SDR10006N is the standard-range AirTAC SDR100 piston back-pressure regulator with PT1/8 ports. It regulates 0.05-0.9 MPa, the full standard band of the SDR series, so it covers general machine circuits where the setpoint may sit anywhere from just above 0.05 MPa up to 0.9 MPa.
As a simple piston back-pressure type, it keeps output pressure stable in circuits that need good value rather than high regulating accuracy, and its compact body installs easily as a single unit. Maximum operating pressure is 1.0 MPa (145 psi), proof pressure 1.5 MPa (215 psi), and the air medium is handled from -20 to +70 C. The bracket is included, while the N code means no pressure gauge is fitted.
| Order code | SDR10006N |
|---|---|
| Product | Piston Pressure Regulator |
| Model and port | SDR100 · PT1/8 |
| Type and bracket | Standard, with bracket |
| Pressure gauge | No gauge (N) |
| Structure | Piston back-pressure type |
|---|---|
| Fluid | Air |
| SDR100 ports | M5 / 1/8 |
| SDR200 ports | 1/8 / 1/4 |
| Regulating range | 0.05-0.9 MPa (standard), 0.03-0.4 MPa (L) |
| Max. pressure | 1.0 MPa (145 psi) |
| Proof pressure | 1.5 MPa (215 psi) |
| Temperature | -20 to +70 °C |
Source: AirTAC Products Catalog 2026A (PDF01-P0274), SDR series specifications and ordering code.
Pick SDR10006N when you want the standard 0.05-0.9 MPa range without a local gauge. Its sibling SDR10006LN keeps the same PT1/8 port but switches to the low-pressure 0.03-0.4 MPa band, the better choice if every setpoint stays under 0.4 MPa. If you want a direct readout on the regulator body instead, order SDR100061 with the MPa gauge, the standard scale for PT thread, or the psi and bar variants SDR100062 and SDR100063. For M5 plumbing rather than PT1/8, move to SDR100M51.
Machine stations fed from a plant air main can be set anywhere between 0.05 and 0.9 MPa, and the 1.0 MPa maximum operating pressure leaves margin against line surges.
Feeding compact AirTAC actuators from a PT1/8 branch, the stable piston back-pressure output holds cylinder speed and force consistent even where fine regulation accuracy is not required.
On machines where a panel-mounted gauge already displays the circuit pressure, the N coding avoids a duplicate gauge at the regulator and keeps the compact bracket-mounted body as the only footprint.
PT1/8 ports, standard regulating range 0.05-0.9 MPa, maximum operating pressure 1.0 MPa (145 psi), proof pressure 1.5 MPa (215 psi), fluid air, operating temperature -20 to +70 C. The mounting bracket is included and no pressure gauge is fitted (code N).
All three sit on the SDR100 body with the PT1/8 port. SDR10006LN is the low-pressure type regulating 0.03-0.4 MPa, intended for setpoints that stay below 0.4 MPa. SDR100061 is the same standard-range unit as SDR10006N but adds an MPa-scaled gauge; here the N leaves the gauge off for panels that read pressure elsewhere.
