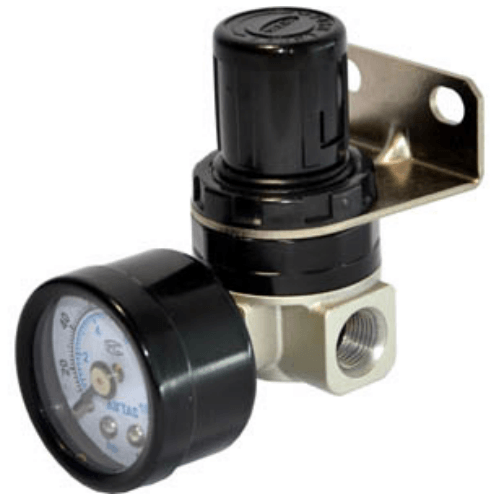

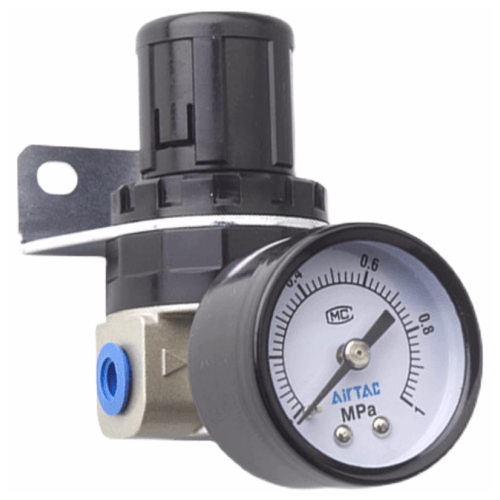

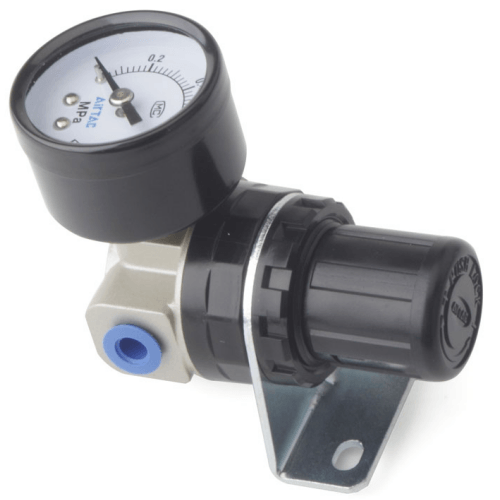

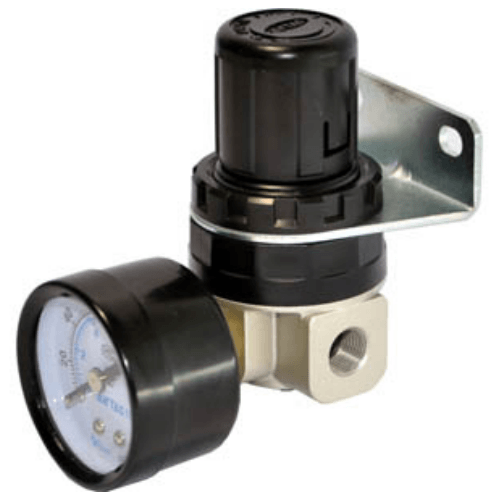

Genuine AirTAC piston pressure regulator, order code SDR100M5JN from the SDR range. The options this code selects are decoded below; series data follow the official AirTAC catalog.
The AirTAC SDR100M5JN pairs the two stripped-down options of the SDR ordering table in one code: N for no pressure gauge and J for no mounting bracket. What remains is the bare SDR100 piston back-pressure regulator with an M5 port and the standard 0.05-0.9 MPa regulating range, ready for circuits that already have their own instrumentation and fixing method.
Because the gauge digit is left out of the code when N is chosen, this build is the cleanest way to order a gaugeless unit. Operating limits are unchanged across the series: maximum pressure 1.0 MPa (145 psi), proof pressure 1.5 MPa (215 psi), fluid temperature -20 to +70 C.
| Order code | SDR100M5JN |
|---|---|
| Product | Piston Pressure Regulator |
| Model and port | SDR100 · M5 |
| Type and bracket | Standard, no bracket (J) |
| Pressure gauge | No gauge (N) |
| Structure | Piston back-pressure type |
|---|---|
| Fluid | Air |
| SDR100 ports | M5 / 1/8 |
| SDR200 ports | 1/8 / 1/4 |
| Regulating range | 0.05-0.9 MPa (standard), 0.03-0.4 MPa (L) |
| Max. pressure | 1.0 MPa (145 psi) |
| Proof pressure | 1.5 MPa (215 psi) |
| Temperature | -20 to +70 °C |
Source: AirTAC Products Catalog 2026A (PDF01-P0274), SDR series specifications and ordering code.
This code is the minimal build of the SDR100 M5 family. If you want a local readout, step up to SDR100M5J1 (MPa scale) or the codes 2 and 3 for psi and bar gauges; the N option always leaves the gauge off and drops the scale digit. If a mounting bracket is needed, remove the J and order the bracketed M5 standard unit. For 1/8 or 1/4 ports move to the 06/08 options or the larger SDR200 size, and for set pressures below 0.4 MPa the L variant SDR100M5L1 is the better match.
Drop the bare regulator body into an existing machine compartment where an external gauge and a fixed mounting already exist, avoiding duplicate hardware.
Regulate pressure on circuits that rely on an electronic pressure switch or transducer instead of a mechanical gauge, so the N option removes redundant readout cost.
Integrate the M5-port, gaugeless regulator into OEM pneumatic modules where the builder supplies its own bracket and dial layout.
SDR series piston back-pressure regulator, SDR100 size, M5 port, standard range 0.05-0.9 MPa, no gauge (N) and no bracket (J). Maximum pressure 1.0 MPa (145 psi), proof pressure 1.5 MPa (215 psi), temperature -20 to +70 C.
With N the pressure gauge is not supplied at all, and per the ordering table the gauge scale digit (1 = MPa, 2 = psi, 3 = bar) is left out of the code. Choosing 1, 2 or 3 instead would add the corresponding gauge to the same bracketless J body.
