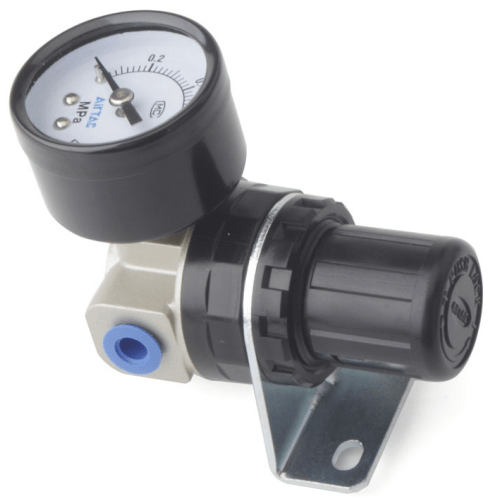

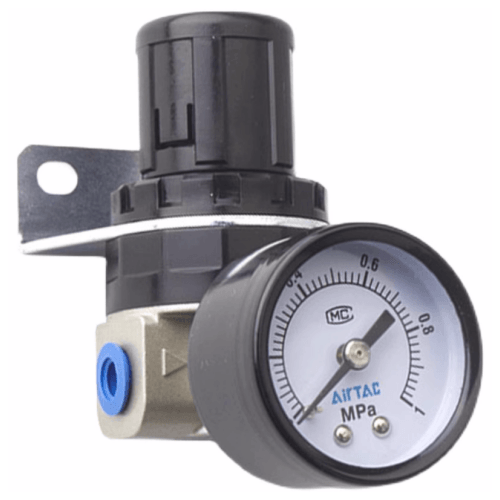

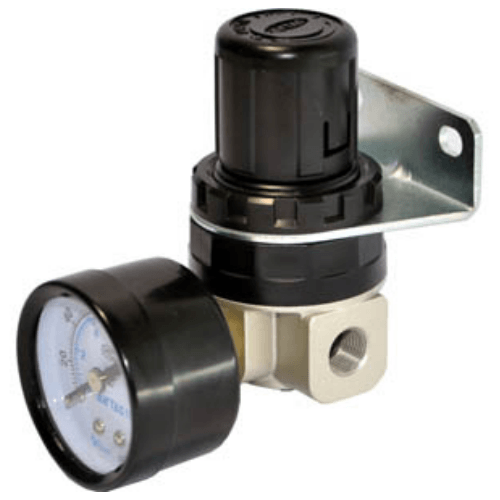

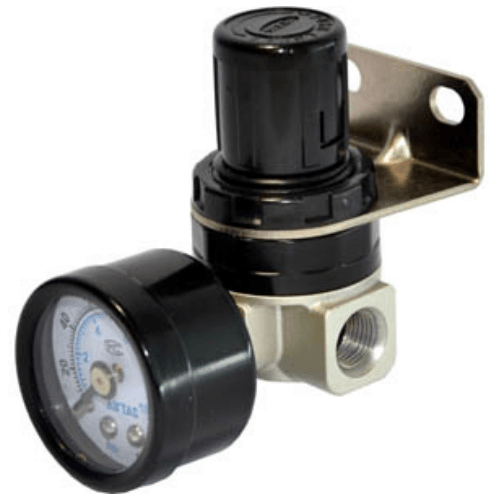

Genuine AirTAC piston pressure regulator, order code SDR100M5LN from the SDR range. The options this code selects are decoded below; series data follow the official AirTAC catalog.
SDR100M5LN combines the low-pressure L range of 0.03-0.4 MPa with the M5 port of the size-100 SDR piston back-pressure regulator, and it keeps the standard mounting bracket because no J code is present. That bracket makes it simple to bolt the small, cost-effective unit to a machine plate or sub-panel.
The N code omits the pressure gauge, so set-point verification comes from your own instrumentation while the body still delivers the stable output the SDR series is known for. Ratings are unchanged: 1.0 MPa (145 psi) maximum operating pressure, 1.5 MPa (215 psi) proof pressure, air fluid, and a -20 to +70 C operating window.
| Order code | SDR100M5LN |
|---|---|
| Product | Piston Pressure Regulator |
| Model and port | SDR100 · M5 |
| Type and bracket | Low-pressure (L), with bracket |
| Pressure gauge | No gauge (N) |
| Structure | Piston back-pressure type |
|---|---|
| Fluid | Air |
| SDR100 ports | M5 / 1/8 |
| SDR200 ports | 1/8 / 1/4 |
| Regulating range | 0.05-0.9 MPa (standard), 0.03-0.4 MPa (L) |
| Max. pressure | 1.0 MPa (145 psi) |
| Proof pressure | 1.5 MPa (215 psi) |
| Temperature | -20 to +70 °C |
Source: AirTAC Products Catalog 2026A (PDF01-P0274), SDR series specifications and ordering code.
Order SDR100M5LN when you need the bracket for frame or plate mounting but read pressure elsewhere; it differs from SDR100M5LJN only by that bracket, and from SDR100M5LJ1 by adding it while dropping the MPa gauge. The L code is the decision point against the standard type: if your set pressure can go above 0.4 MPa, the non-L SDR100 regulating 0.05-0.9 MPa is the right sibling.
Fix the regulator directly to a machine frame or control plate using the included bracket, supplying 0.03-0.4 MPa air to low-pressure circuits.
Regulate soft air assists on sorting and picking stations, where fragile items only need pressures well below the 0.4 MPa L-type ceiling.
Feed loops where a transducer or panel display already shows pressure, so the gauge-free N code keeps the small M5 unit simple and uncluttered.
SDR100 with an M5 port, low-pressure L type regulating 0.03-0.4 MPa, mounting bracket included, no gauge (code N). Max operating pressure 1.0 MPa (145 psi), proof pressure 1.5 MPa (215 psi), fluid air, temperature -20 to +70 C.
Because SDR100M5LN leaves the J code blank, it arrives with the standard bracket, letting you secure the regulator as a single mounted unit on a panel or frame. The J-coded siblings SDR100M5LJN and SDR100M5LJ1 ship without that bracket, relying on port fixing instead, and SDR100M5LJ1 additionally carries an MPa gauge.
