AirTAC SDR · Piston Pressure Regulator

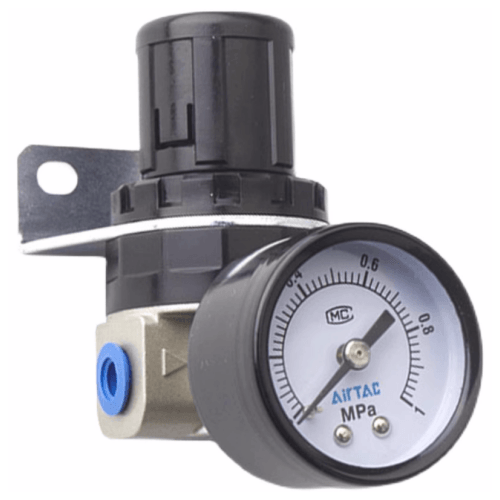

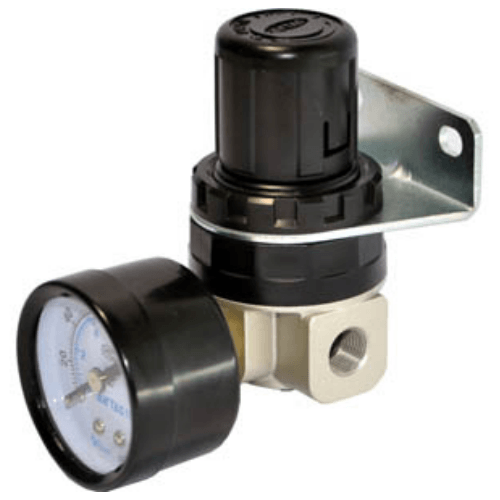

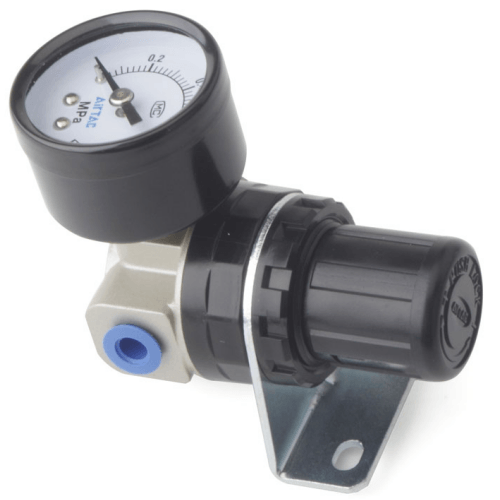

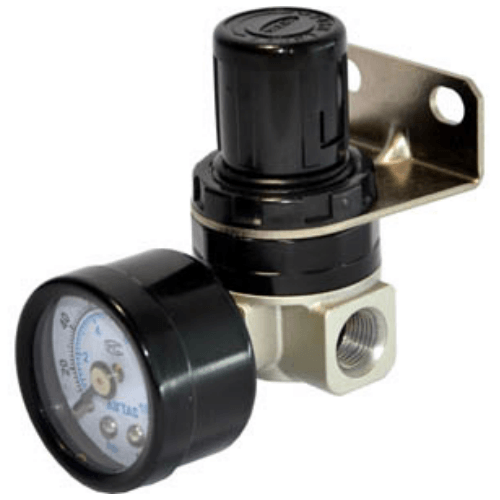

Airtac SDR Pressure Regulator SDR200081

Genuine AirTAC piston pressure regulator, order code SDR200081 from the SDR range. The options this code selects are decoded below; series data follow the official AirTAC catalog.

  • Model and portSDR200 · PT1/4
  • Type and bracketStandard, with bracket
  • Pressure gaugeMPa gauge (1)
  • StructurePiston back-pressure type
  • FluidAir
  • SDR100 portsM5 / 1/8
$19.30 $26.80Save 27%
Request a Quote
  • No minimum order. A single piece can be ordered.
  • Shipped from our own warehouse: most standard models dispatch in 3–5 days; custom and non-standard models take 8–10 business days. Transit time after that depends on the destination.
Compare every SDR model and port, type and bracket and pressure gauge on one page All SDR codes →
verified Genuine AirTAC workspace_premium 1-year warranty bolt Reply in 7 h

About the Airtac SDR Pressure Regulator SDR200081

This SDR200 code pairs the 1/4 port size with PT threading, the standard regulating range and a factory-fitted pressure gauge. As a piston back-pressure regulator it is simple, small and cost-effective, with output pressure that stays stable on circuits that do not demand high regulating accuracy.

Nothing has been deleted from this build: the trailing 1 orders the MPa gauge scale, and the blank in the bracket position means the mounting bracket is included. With a 1.0 MPa (145 psi) maximum operating pressure, 1.5 MPa proof pressure and a -20 to +70 C window, it installs as a single unit straight onto the line.

Airtac SDR Pressure Regulator SDR200081 Technical Specifications

Order codeSDR200081
ProductPiston Pressure Regulator
Model and portSDR200 · PT1/4
Type and bracketStandard, with bracket
Pressure gaugeMPa gauge (1)
StructurePiston back-pressure type
FluidAir
SDR100 portsM5 / 1/8
SDR200 ports1/8 / 1/4
Regulating range0.05-0.9 MPa (standard), 0.03-0.4 MPa (L)
Max. pressure1.0 MPa (145 psi)
Proof pressure1.5 MPa (215 psi)
Temperature-20 to +70 °C

Source: AirTAC Products Catalog 2026A (PDF01-P0274), SDR series specifications and ordering code.

How to choose

Choose SDR200081 when you need a PT1/4 connection and want the regulator secured out of the box, because the bracket is standard here while code J on SDR20008J1 removes it. If your working setpoint never rises above 0.4 MPa, the low-pressure SDR20008L1 covers 0.03-0.4 MPa instead; for a 1/8 PT port move to SDR200061, and for G threads paired with a bar scale the ordering table points to SDR20008G1.

Applications

factory

General line pressure setting

Set a steady downstream pressure on a 1/4 PT air circuit where good value matters more than fine regulating accuracy.

settings

MPa-based commissioning

The scale-1 gauge reads directly in MPa, so technicians can verify the 0.05-0.9 MPa setting against drawings written in the same units.

build

Bracket-mounted single unit

Fix the regulator to a machine frame or panel wall using the supplied bracket rather than stressing the piping.

FAQ

What are the key figures of the SDR200081?

PT1/4 ports, standard regulating range 0.05-0.9 MPa, maximum operating pressure 1.0 MPa (145 psi), proof pressure 1.5 MPa, fluid air, temperature -20 to +70 C, MPa-scale gauge and mounting bracket both included.

What does the final digit 1 in the code mean?

It selects the gauge scale: 1 is MPa (standard with PT thread), 2 is psi (paired with NPT thread) and 3 is bar (paired with G thread). Ordering the code with N instead would delete the gauge entirely.
