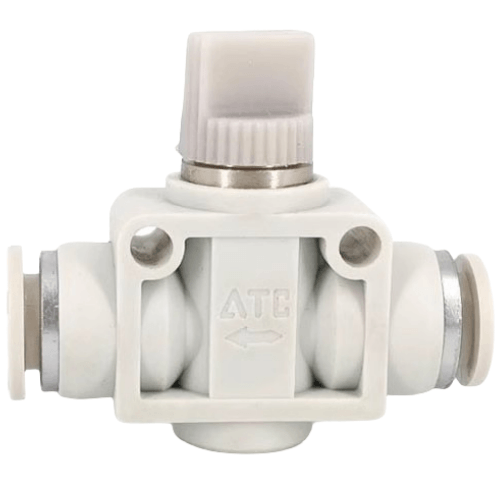

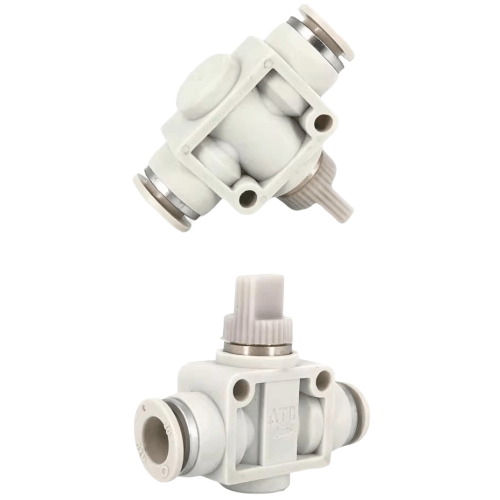

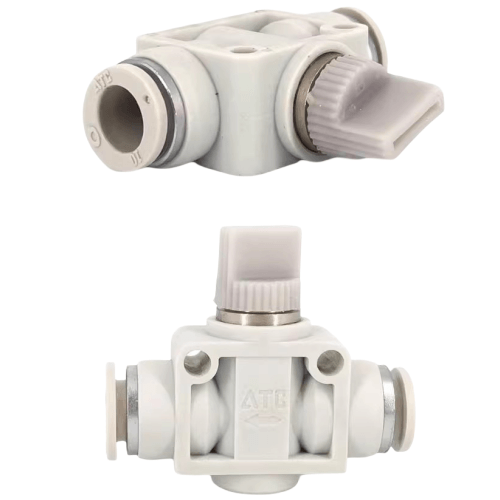

Airtac X-AHVFF Manual Valve X-AHVFF0404B
AirTAC X-AHVFF0404B Manual Valve Technical Details
- Model: X-AHVFF0404B (with lockable handle)
- Type: 2-position 5-port manual valve
- Port configuration: 4 ports × 4mm tubing size
- Thread standard: G1/8 (ISO228 compatible)
- Operating pressure range: 0.2–1.0 MPa
- Max flow rate: 450 NL/min
- Body material: Anodized aluminum alloy (hard coating)
- Seal material: Heat-resistant HNBR (-10℃ to 120℃)
- Handle type: Ergonomically angled lever with anti-slip grooves
- Mounting options: Panel mount or inline installation
- Weight: 280g ±5g
- Dimensions: 62mm(L) × 38mm(W) × 52mm(H)
- Port spacing: 18mm center-to-center (horizontal), 15mm (vertical)
- Protection rating: IP54 (dust protected, splash resistant)
Industrial-grade manual override valve featuring zero-leakage poppet design and 180° smooth handle rotation. Optimized flow paths reduce air turbulence by 30% compared to standard valves. Includes integrated locking mechanism for stable position retention. Compatible with ISO 15407-1 standards.
- Emergency override in automated production lines
- Pneumatic system maintenance bypass control
- Educational training equipment for fluid power systems
- Mobile hydraulic/pneumatic hybrid machinery
- Semiconductor manufacturing gas line control
Installation guidelines:
Apply thread sealant (PTFE tape recommended) on male threads only.
For vertical mounting, ensure exhaust ports face downward to prevent
debris accumulation. Torque limit: 12-15 N·m.
| Property | Property Value |
|---|---|
| sku | X-AHVFF0404B |
