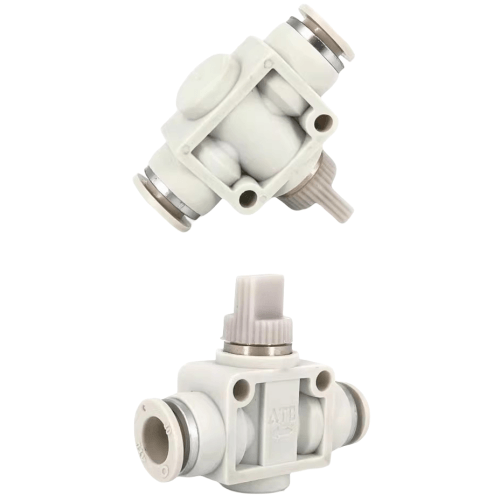

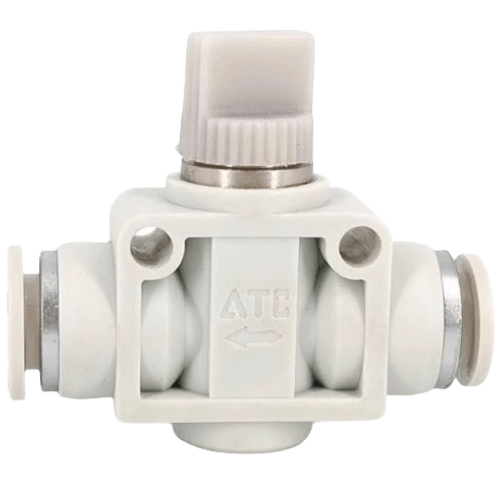

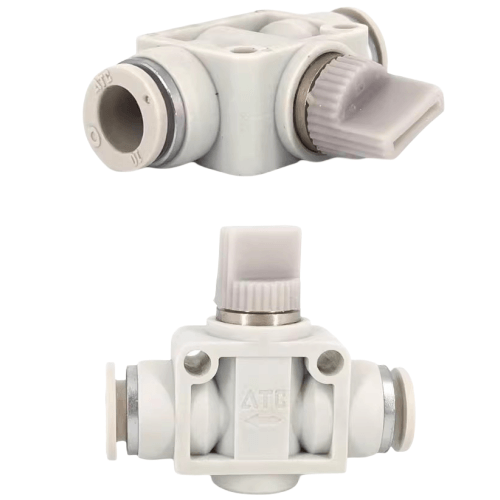

Airtac X-AHVFF Manual Valve X-AHVFF1212B
AirTAC X-AHVFF1212B Manual Hand Valve Specifications
- Full model: X-AHVFF1212B
- Valve type: 3-position detent type (Push-Pull-Push)
- Port configuration: 3/2-way (3 ports, 2 positions)
- Port thread size: PT1/4 (BSPP standard)
- Operating pressure range: 0.2–0.8 MPa
- Maximum flow rate: 650 L/min (ANR)
- Operating temperature: -5℃ to 60℃ (with NBR seals)
- Body material: Aluminum alloy with hard anodizing
- Spindle material: Stainless steel SUS304
- Handle type: Ergonomic T-bar with anti-slip grooves
- Mounting style: Panel mount (front mounting)
- Weight: 650g ±3%
- Dimensions: 100mm(L) × 35mm(W) × 35mm(H)
- Port locations: Bottom inlet (P), side outlets (A/B)
- Position indication: Colored position markers (Green/Red)
Robust manual override valve designed for precise pneumatic circuit control, featuring positive detent positioning and corrosion-resistant construction. The chrome-plated spindle ensures smooth operation through 200,000+ cycles. Includes built-in silencer for exhaust port noise reduction (75 dB max). Compatible with ISO 15407-1 standards.
- Emergency stop systems in assembly lines
- Manual override for automated machinery
- Pneumatic training equipment controls
- Material handling system diverters
- Test bench pressure regulation
Installation note:
Ensure minimum 15mm clearance around handle for full actuation range.
Apply thread sealant (PTFE tape recommended) on port connections.
For vertical mounting, orient exhaust port downward to prevent debris ingress.
