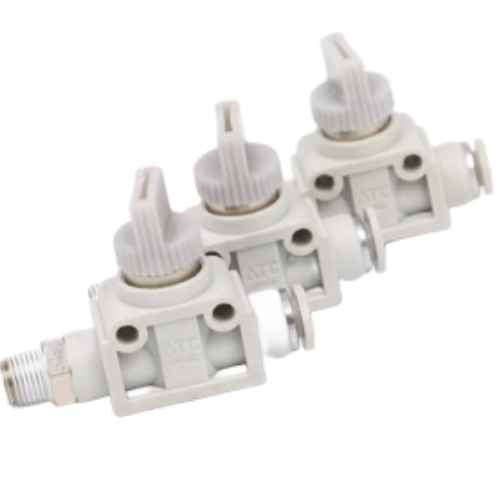

Airtac X-AHVFS Hand Valve X-AHVFS0306B
AirTAC X-AHVFS0306B Manual Hand Valve Specifications
- Model: X-AHVFS0306B
- Type: 3/2-way manual operated valve (spring return)
- Port size: G1/8 (ISO228 standard)
- Operating pressure range: 0.2–0.8 MPa
- Maximum flow rate: 650 NL/min (at 0.5 MPa)
- Valve body material: Anodized aluminum alloy
- Seal material: Nitrile rubber (NBR) standard (FKM optional)
- Temperature range: -20℃ to 80℃
- Operating style: Lever lock mechanism with visual position indicator
- Mounting type: Panel mount with 30mm DIN rail compatibility
- Weight: 220g ±5g
- Dimensions: 60mm(L) × 40mm(W) × 30mm(H)
- Protection class: IP40 (dust protected)
- Actuation force: ≤3.5N at lever tip
Robust manual override valve with positive locking mechanism, featuring dual-color position indicators (green/red) for clear status identification. The ergonomic lever design allows single-finger operation even with gloves. Precision-machined brass internals ensure leak-free performance under cyclic stress. Compatible with ISO 8573-1 Class 3 compressed air quality.
- Emergency override in automated production lines
- Maintenance isolation for pneumatic circuit troubleshooting
- Manual mode activation in semiconductor handling equipment
- Safety bypass in hydraulic-pneumatic hybrid systems
- Process control in food packaging machinery (NBR/FKM versions)
Installation guidelines:
Mount in accessible locations with ≥15mm clearance around lever arc.
For vertical mounting, orient flow arrow upward. Lubricate pivot point
annually with ISO VG32 hydraulic oil. Not recommended for continuous
pulsation applications above 2 Hz.
| Property | Property Value |
|---|---|
| sku | X-AHVFS0306B |
