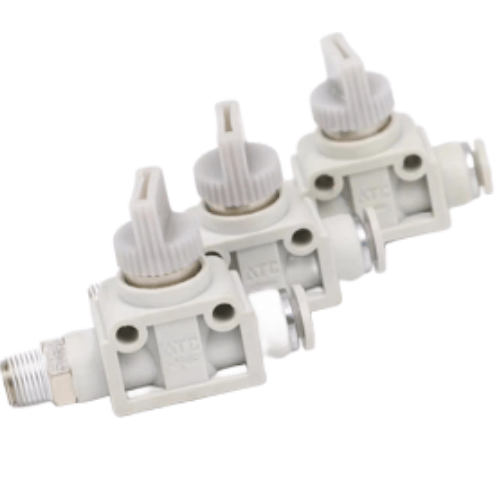

Airtac X-AHVFS Hand Valve X-AHVFS0602B
AirTAC X-AHVFS0602B Manual Valve Technical Details
- Model: X-AHVFS0602B
- Type: 3/2-way manual push-pull valve (spring return)
- Port size: G1/8 (ISO228-1 standard)
- Operating pressure: 0.1–0.8 MPa (14.5–116 PSI)
- Flow capacity: 200 l/min (ANR) at 0.5 MPa
- Body material: Anodized aluminum alloy (hard coating)
- Seal material: High-grade HNBR (-20℃ to 120℃)
- Actuation force: 50N max (ergonomic button design)
- Weight: 210g ±5g (including accessories)
- Dimensions: 80mm(L) × 40mm(W) × 40mm(H)
- Temperature range: -20℃ to 80℃ (dry air operation)
- Mounting orientation: Any (horizontal/vertical)
- Port thread depth: 10mm (double-sealing structure)
- Protection rating: IP54 (dust & splash resistant)
Industrial-grade manual override valve with tactile feedback mechanism, featuring dual-stage sealing for leak-free performance. The chrome-plated steel spring ensures 500,000+ cycle durability. Compatible with ISO 8573-1:2010 Class 3.4.3 compressed air standards. Includes integrated mounting ears for panel installation.
- Emergency override in automated production lines
- Maintenance bypass for pneumatic system troubleshooting
- Manual control in semiconductor handling equipment
- Safety interlocks for press machine tooling
- Educational pneumatic training stations
Installation protocol:
Apply 20-30Nm torque during port connection. For vertical mounting,
position exhaust port downward to prevent debris accumulation.
Lubricate seals with ISO VG32 turbine oil during maintenance.
| Property | Property Value |
|---|---|
| sku | X-AHVFS0602B |
