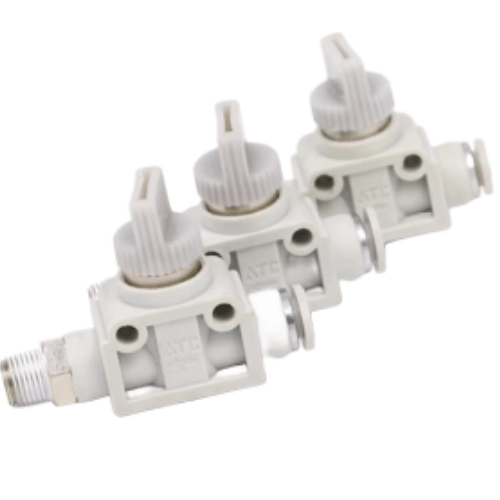

Airtac X-AHVFS Hand Valve X-AHVFS1002B
AirTAC X-AHVFS1002B Manual Valve Technical Details
- Model: X-AHVFS1002B (ISO 15407-1 compliant)
- Type: 3-position (Open/Closed/Exhaust) manual shut-off valve
- Port configuration: 1/4" BSPP (G1/4) female threads
- Operating pressure range: 0.1-1.0 MPa (14.5-145 PSI)
- Max flow capacity: 750 L/min (Cv=1.8)
- Body material: Anodized aluminum alloy (ADC12)
- Seal material: High-grade NBR (Nitrile) with glass fiber reinforcement
- Temperature tolerance: -20℃ to 80℃ (-4°F to 176°F)
- Operating torque: ≤3 N·m (26.5 lb-in)
- Weight: 485g ±5g (1.07 lbs)
- Dimensions: 98mm(L) × 52mm(W) × 38mm(H) (3.86" × 2.05" × 1.5")
- Surface treatment: Chromate conversion coating (MIL-DTL-5541 Class 3)
- Leakage rate: <3 bubbles/min (ISO 6952 test standard)
Industrial-grade manual override valve with triple-position lock mechanism for precise airflow management. Features anti-vibration stem design and dust-resistant O-ring seals. The ergonomic lever incorporates a tactile position indicator with 45° actuation angle. Compatible with ISO 8573-1:2010 Class 3 compressed air quality.
- Emergency bypass in automated production lines
- Maintenance isolation for pneumatic circuit troubleshooting
- Pressure regulator override in CNC machinery
- Manual control in semiconductor manufacturing equipment
- Safety lockout during robotic cell maintenance
Installation guidelines:
Apply 15-20 N·m torque during port connection. Use PTFE tape on male threads only.
For horizontal mounting, orient lever upward for optimal debris resistance. Perform
monthly lubrication with ISO VG32 pneumatic oil.
| Property | Property Value |
|---|---|
| sku | X-AHVFS1002B |
