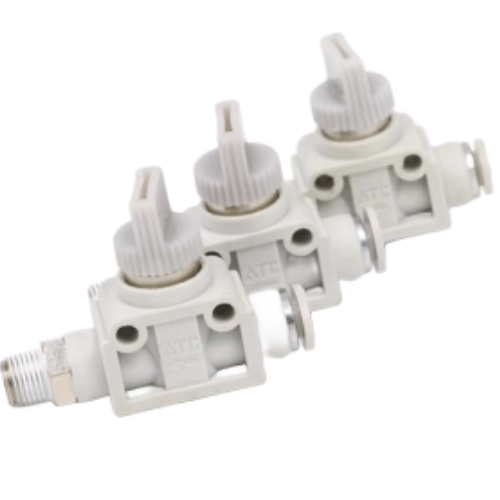

Airtac X-AHVFS Hand Valve X-AHVFS1003B
AirTAC X-AHVFS1003B Manual Valve Technical Specifications
- Model: X-AHVFS1003B
- Type: 3-position, 4-way manual directional control valve
- Port configuration: P (pressure), A/B (actuator ports), R/S (exhaust)
- Port size: G1/8 (ISO228/1 standard)
- Operating pressure range: 0.2–1.0 MPa
- Max flow rate: 700 L/min (ANR)
- Operating temperature: -5℃ to 80℃
- Body material: Aluminum alloy (anodized surface treatment)
- Seal material: HNBR (Hydrogenated Nitrile) for high temperature resistance
- Actuation type: Rotary lever with positive detent mechanism
- Weight: 320g ±5g
- Dimensions: 56mm(W) × 40mm(H) × 85mm(D)
- Mounting: Sub-base compatible (ISO 15552 optional)
- Port thread depth: 10mm (minimum engagement)
- Leakage: <0.1 cm³/min under rated pressure
Industrial-grade manual valve featuring tactile position feedback and dual O-ring sealing. The chrome-plated lever offers 180° rotation with clear center/position markings. Designed for high-cycle operations with wear-resistant bushings and maintenance-free construction. Compatible with ISO 8573-1:2010 Class 3 compressed air quality.
- Emergency override in automated production lines
- Manual control of clamping fixtures in CNC machining centers
- Pneumatic system maintenance bypass operations
- Educational training equipment for fluid power systems
- Mobile hydraulic/pneumatic hybrid machinery
Installation note:
Apply 2-3 drops of AirTAC P80 lubricant to shaft bushings during assembly.
Ensure exhaust ports face downward when installed in dusty environments.
Max torque for port connections: 12 N·m.
| Property | Property Value |
|---|---|
| sku | X-AHVFS1003B |
