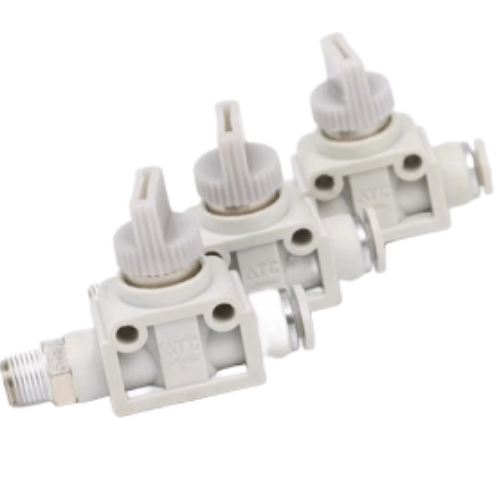

Airtac X-AHVFS Hand Valve X-AHVFS1202
AirTAC X-AHVFS1202 Manual Hand Valve Technical Specifications
- Model: X-AHVFS1202 (Manual Override Type)
- Valve type: 3/2-way normally closed (mechanical actuation)
- Port connection: G1/8 (BSPP thread) with dual mounting holes
- Operating pressure range: 0.2–0.9 MPa
- Max flow capacity: 450 NL/min (ANR)
- Body material: Anodized aluminum alloy (hard coat)
- Seal material: HNBR (Hydrogenated Nitrile) for improved oil resistance
- Operating temperature: -10℃ to 80℃ (with condensation prevention)
- Actuation force: ≤3.5 N (manual lever operation)
- Weight: 220g ±5% (including mounting hardware)
- Dimensions: 80mm(L) × 50mm(W) × 30mm(H) (excluding lever protrusion)
- Port thread depth: 8.5mm (full engagement recommended)
- Vibration resistance: 10–55Hz with 1.5mm amplitude
Robust manual override valve with ergonomic lever design, featuring dual-stage sealing for leak-free performance in high-cycle applications. The hardened aluminum body withstands industrial environments while the chrome-plated lever resists hand sweat corrosion. Includes integrated mounting lugs for panel or manifold installation.
- Emergency stop systems in assembly line pneumatics
- Maintenance bypass control for automated machinery
- Manual mode override in packaging equipment
- Process testing setups requiring manual air flow regulation
- Safety lockout/tagout (LOTO) implementations
Operation guidance:
Apply smooth lever rotation through 90° arc - avoid sudden jerks.
For vertical installations, orient exhaust port downward to prevent
debris accumulation. Lubricate pivot point annually with ISO VG32-grade oil.
| Property | Property Value |
|---|---|
| sku | X-AHVFS1202 |
