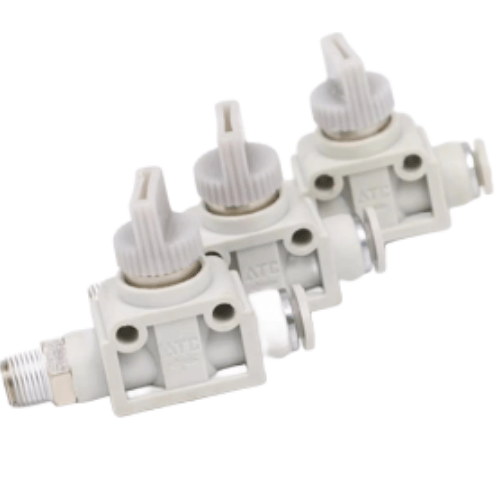

Airtac X-AHVFS Hand Valve X-AHVFS1203B
AirTAC X-AHVFS1203B Manual Valve Technical Details
- Model: X-AHVFS1203B
- Type: 3-position (Open/Closed/Exhaust) manual lever valve
- Port size: 1/4" NPT (G1/4 optional)
- Operating pressure: 0.2–0.8 MPa (29–116 PSI)
- Max flow capacity: 1200 NL/min
- Valve body material: Anodized aluminum alloy
- Spindle material: Stainless steel SUS304
- Seal material: NBR (Nitrile rubber)
- Temperature range: -10℃ to 80℃ (14℉ to 176℉)
- Thread engagement depth: ≥8mm
- Weight: 0.28 kg (0.62 lbs)
- Dimensions: 120mm(L) × 40mm(W) × 40mm(H)
- Mounting options: Panel mount with M5 fasteners
Robust manual override valve with triple-position control, featuring a wear-resistant ball bearing mechanism for smooth lever operation. The chrome-plated lever handle provides positive tactile feedback with 90° swing arc. Designed for systems requiring manual intervention in automated pneumatic circuits.
- Emergency shutdown in conveyor systems
- Manual pressure regulation during machine maintenance
- Air supply isolation in plastic injection molding machines
- Process line configuration switching
- Pneumatic system troubleshooting stations
Operation guidance:
Apply maximum 5N·m torque during lever rotation. Lubricate spindle quarterly
with ISO VG32 hydraulic oil. Avoid rapid switching cycles exceeding 1Hz.
| Property | Property Value |
|---|---|
| sku | X-AHVFS1203B |
