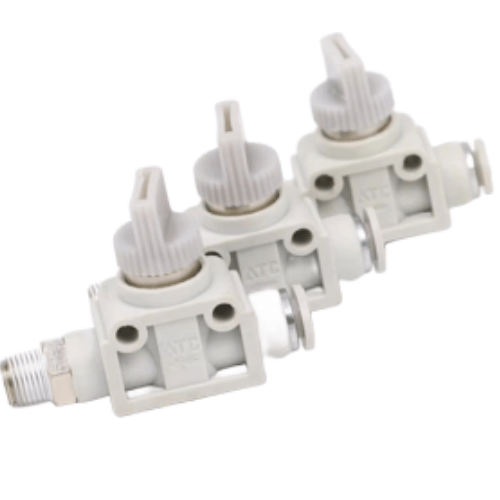

Airtac X-AHVFS Hand Valve X-AHVFS1204
AirTAC X-AHVFS1204 Manual Valve Technical Details
- Model: X-AHVFS1204
- Type: 2-position 5-way manual valve (detent mechanism)
- Port configuration: 5 ports (P, A, B, EA, EB)
- Port size: PT1/4 (G1/8 optional)
- Operating pressure: 0.15–0.8 MPa (21.7–116 PSI)
- Max flow rate: 1,000 NL/min (ANR)
- Actuation force: ≤3.5 N
- Body material: Aluminum alloy (hard anodized)
- Seal material: HNBR rubber (oil & heat resistant)
- Temperature range: -20℃ to 70℃ (non-freezing)
- Weight: 520g ±5% (with fittings)
- Dimensions: 98mm(L) × 38mm(W) × 52mm(H)
- Mounting: Direct panel mounting (M5 screw holes)
- Protection rating: IP40 (finger-safe design)
Industrial-grade manual valve with positive center position lock, featuring 5-way flow path control for bidirectional cylinder operation. The ergonomic lever offers 45° actuation angle with tactile feedback, while the hardened aluminum construction resists impact deformation in harsh environments. Includes built-in exhaust mufflers (EA/EB ports) for noise reduction.
- Emergency override in automated production lines
- Manual mode switching for hydraulic test benches
- Safety isolation in metallurgical equipment
- Maintenance bypass in chemical processing systems
- Educational pneumatic training setups
Operation guidance:
Apply steady lateral force to toggle positions - avoid vertical pressure.
Lubricate pivot point with ISO VG32 oil every 50,000 cycles.
Use locknut (M12×1.25) on mounting panel for vibration resistance.
| Property | Property Value |
|---|---|
| sku | X-AHVFS1204 |
