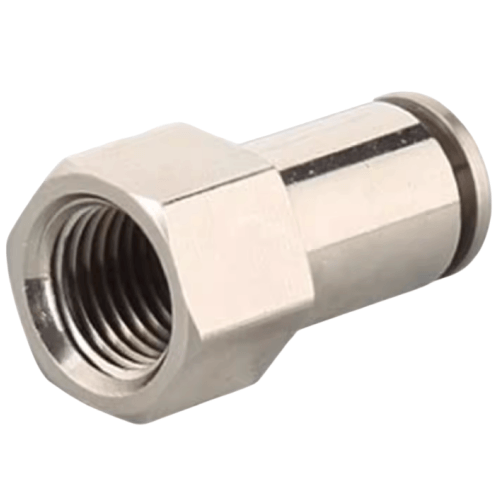

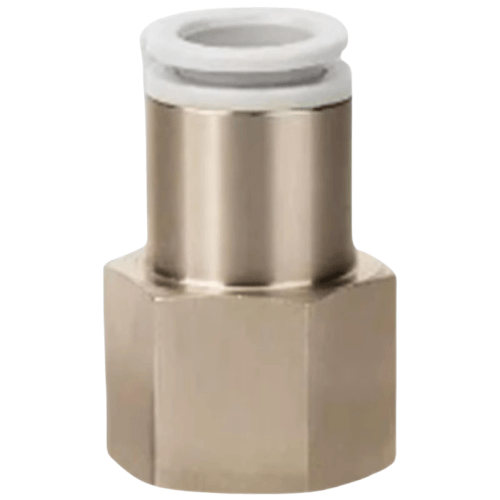

Airtac X-APCFT Connector - Full Brass Female Thread Straight Through X-APCFT1002
AirTAC X-APCFT1002 Full Brass Female Thread Straight Fitting Detailed Specifications
- Model: X-APCFT1002
- Thread Standard: Metric/PT/NPT (selectable per order)
- Female Thread Size: PT1/8 (R1/8) / M10×1.0
- Material: Lead-free brass CW617N (RoHS compliant)
- Surface Treatment: Electro-less nickel plating (3-5μm)
- Pressure Rating: 0.2-1.0 MPa (2-10 bar)
- Burst Pressure: ≥3.0 MPa
- Operating Temperature: -20℃ to 120℃
- Seal Material: HNBR O-ring (-20℃~150℃)
- Flow Rate: 300 NL/min @ 0.5 MPa
- Weight: 28±2g (with packaging: 35g)
- Dimensions: 40mm(L) × 12mm(OD) × 12mm(ID passage)
- Torque Limit: 12-15 N·m during installation
- Vibration Resistance: 10-55Hz, 1.5mm amplitude
Precision-machined pneumatic connector featuring dual-seal design with HNBR O-rings for leak-free performance in high-cycle applications. The nickel-plated brass body resists corrosion from humid environments and chemical-laden air lines. Internal flow path optimized for minimal pressure drop.
- High-frequency pneumatic cylinder connections
- Plastic injection molding machine air circuits
- Food processing equipment (NSF compliant version available)
- Semiconductor fab cleanroom pneumatic systems
- Hydraulic test bench instrumentation lines
Installation protocol:
Apply thread sealant (Loctite 577 recommended) to male threads only.
Hand-tighten plus 1/4 turn with wrench. Avoid overtightening -
max 15N·m torque. Perform pressure test at 1.25× working pressure
after installation.
- X-APCFT1001 (Male thread counterpart)
- AS-4002 Anti-vibration sleeve kit
- PTFE-8M High-temp sealant tape
| Property | Property Value |
|---|---|
| sku | X-APCFT1002 |
